Rear Console Box: Installation

  1. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
    1. Engage the 4 claws and install the rear console box.
    2. Fig 1: Locating Rear Console Box Claws
      G05403795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 3 bolts.
    4. Connect the clamp.
  2. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.
      Fig 2: Locating Console Box Carpet
      G05403794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR CONSOLE BOX COVER
    1. Engage the 9 claws and install the rear console box cover.
      Fig 3: Identifying Rear Console Box Cover Claws
      G05403793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL UPPER CONSOLE PANEL
    1. Engage the 2 clips and the 6 claws and install the upper console panel.

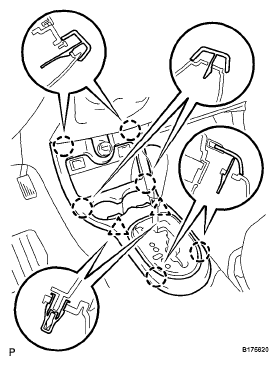

      Fig 4: Identifying Upper Console Panel Clips And Claws
      G05403792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
    1. Install the shift lever knob.
      Fig 5: Installing Shift Lever Knob
      G05403804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
