Rear Console Box: Components

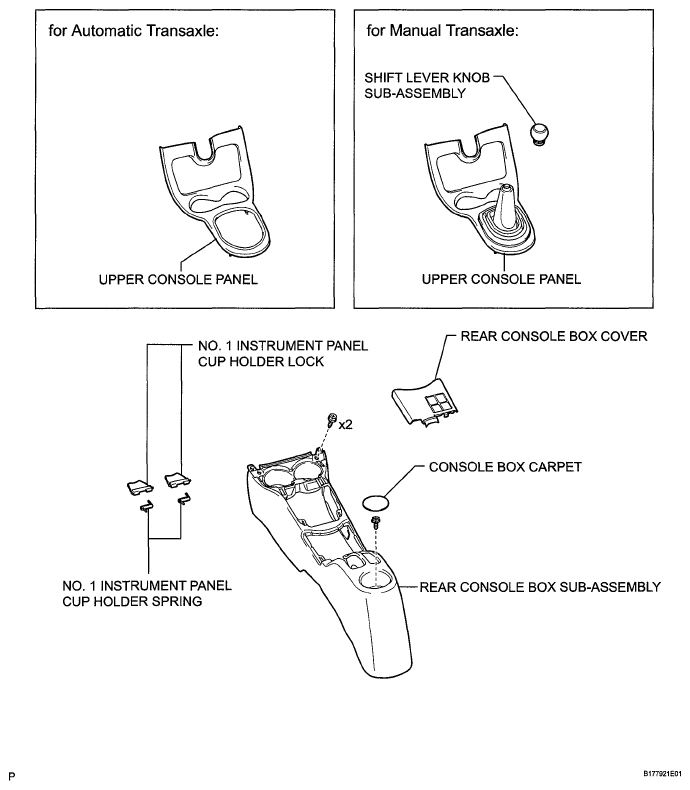

Fig 1: Identifying Rear Console Box Components

G05403790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
