Name Plate: Installation

INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

Clean the attachment surface.
1. Using an infrared light, heat the double-sided adhesive tape remaining on the back door panel.
  HINT:

  Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

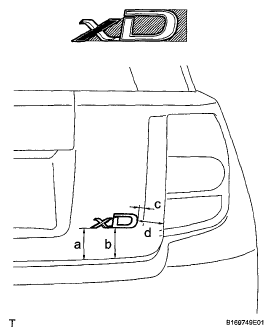

  Fig 1: Identifying No. 2 Luggage Compartment Door Name Plate Dimension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a piece of cloth, rub the double-sided adhesive tape off the back door panel while it is hot from the infrared light.
  NOTE: Installing the No. 2 luggage compartment door name plate while any double-sided tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided tape.
3. Using a non-residue solvent, clean the attachment surface.

Install a new No. 2 luggage compartment door name plate as shown in the illustration.

Installation position

DOOR NAME PLATE INSTALLATION POSITION

Mark	Measurement (along surface)
a	74.7 mm (2.941 in.)
b	75.0 mm (2.953 in.)
c	19.0 mm (0.748 in.)
d	73.9 mm (2.909 in.)

NOTE: Install the No. 2 luggage compartment door name plate in an environment where the ambient temperature is over 20C (68°F). If it is below 20C (68°F), using an infrared light, heat the back door panel and the No. 2 luggage compartment door name plate up to 20 to 30C (68 to 86F) and install the No. 2 luggage compartment door name plate.

INSTALL SYMBOL EMBLEM
1. Clean the attachment surface.
  1. Using an infrared light, heat the double-sided adhesive tape remaining on the back door panel.
    HINT:

    Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.
  2. Using a piece of cloth, rub the remaining double-sided adhesive tape off the back door panel while it is hot from the infrared light.
    NOTE: Installing the symbol emblem with any double-sided tape remaining on the back door panel may cause adhesion failure. Therefore, completely remove the double-sided tape.
  3. Using a non-residue solvent, clean the attachment surface.
2. Insert the 2 pins into the back door panel and install the symbol emblem.
  NOTE: Install the symbol emblem in an environment where the ambient temperature is over 20 C (68 F). If it is below 20 C (68 F), using an infrared light, heat the back door panel and the symbol emblem up to 20 to 30°C (68 to 86°F) and install the symbol emblem.

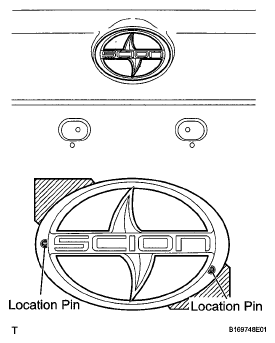

  Fig 2: Identifying Symbol Emblem Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
1. Clean the attachment surface.
  1. Using an infrared light, heat the double-sided adhesive tape remaining on the engine hood.
    HINT:

    Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

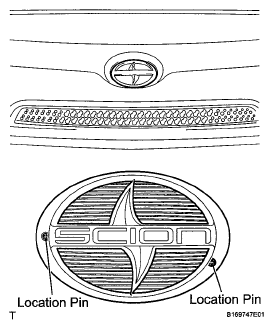

    Fig 3: Identifying Radiator Grille Emblem Pin
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using a piece of cloth, rub the remaining double-sided adhesive tape off the engine hood while it is hot from the infrared light.
    NOTE: Installing the radiator grille (or front panel) emblem with any double-sided tape remaining on the engine hood may cause adhesion failure. Therefore, completely remove the double-sided tape.
  3. Using a non-residue solvent, clean the attachment surface.
2. Insert the 2 pins into the engine hood and install the radiator grille (or front panel) emblem.
  NOTE: Install the radiator grille (or front panel) emblem in an environment where the ambient temperature is over 20C (68°F). If it is below 20C (68°F), using an infrared light, heat the engine hood and the radiator grille (or front panel) emblem up to 20 to 30C (68 to 86F) and install the radiator grille (or front panel) emblem.
