Front Bumper: Components

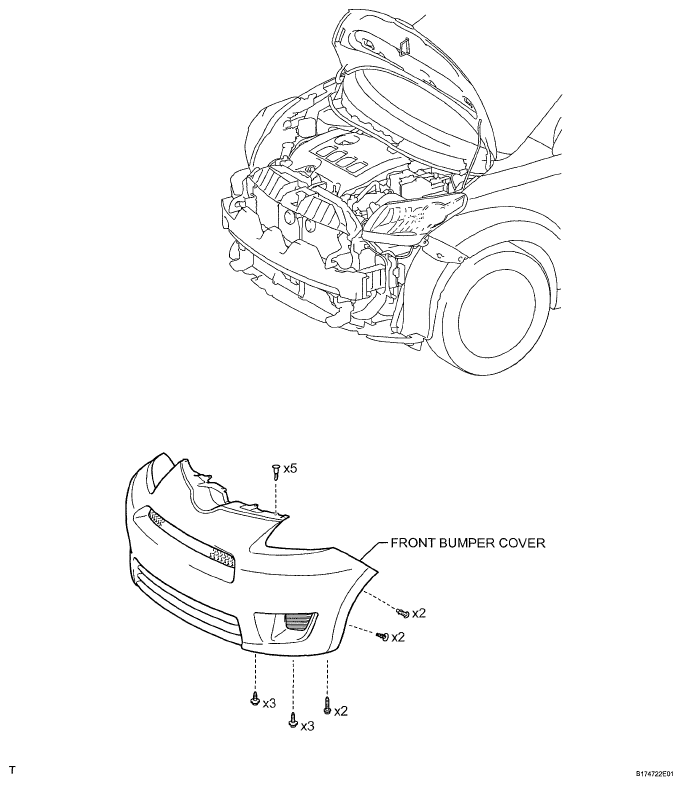

Fig 1: Front Bumper Replacement Components With Torque Specifications (1 Of 4)
G05401808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

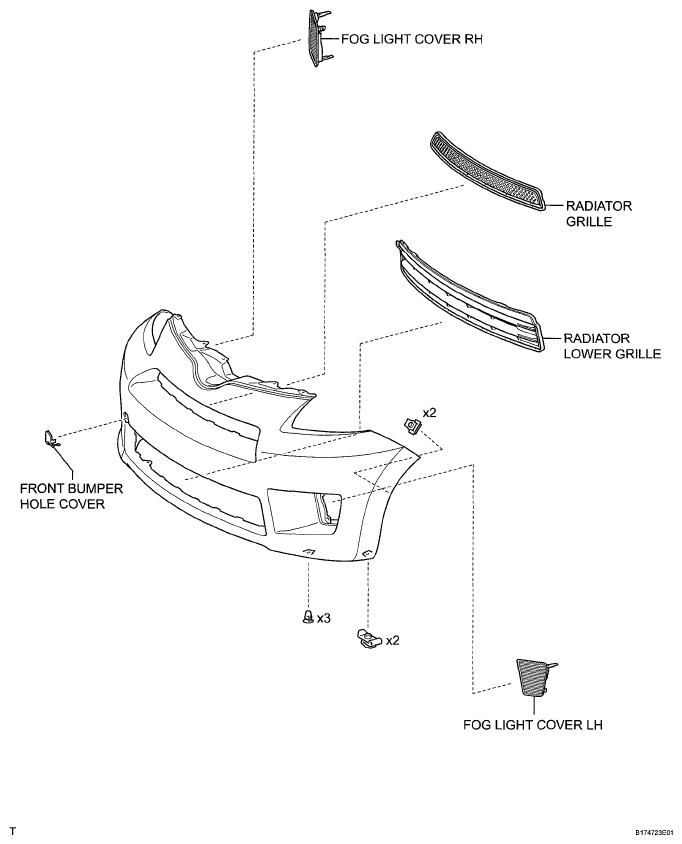

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 4)
G05403566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

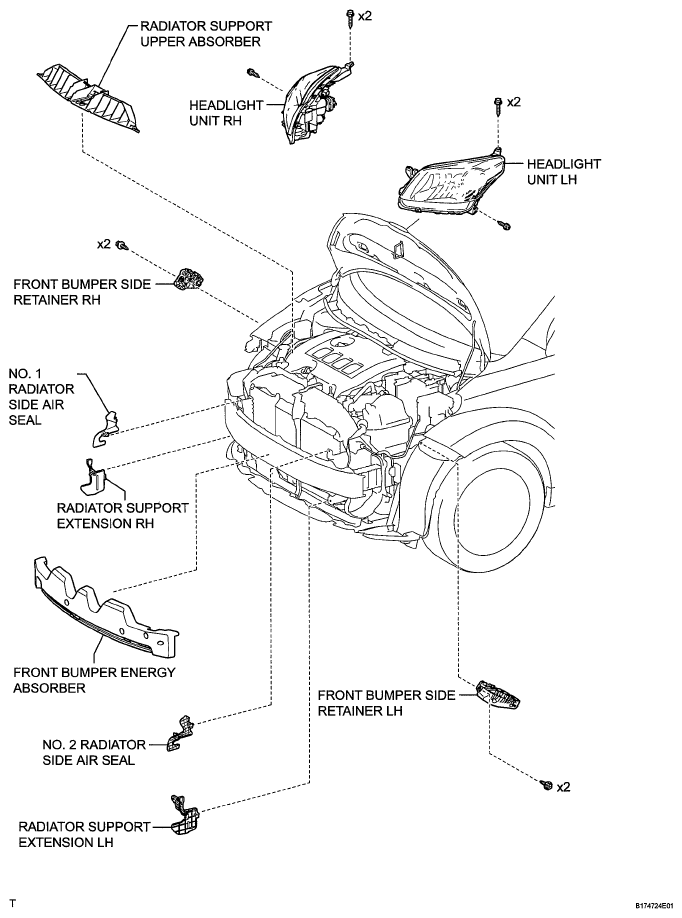

Fig 3: Identifying Front Bumper Components (3 Of 4)
G05403567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

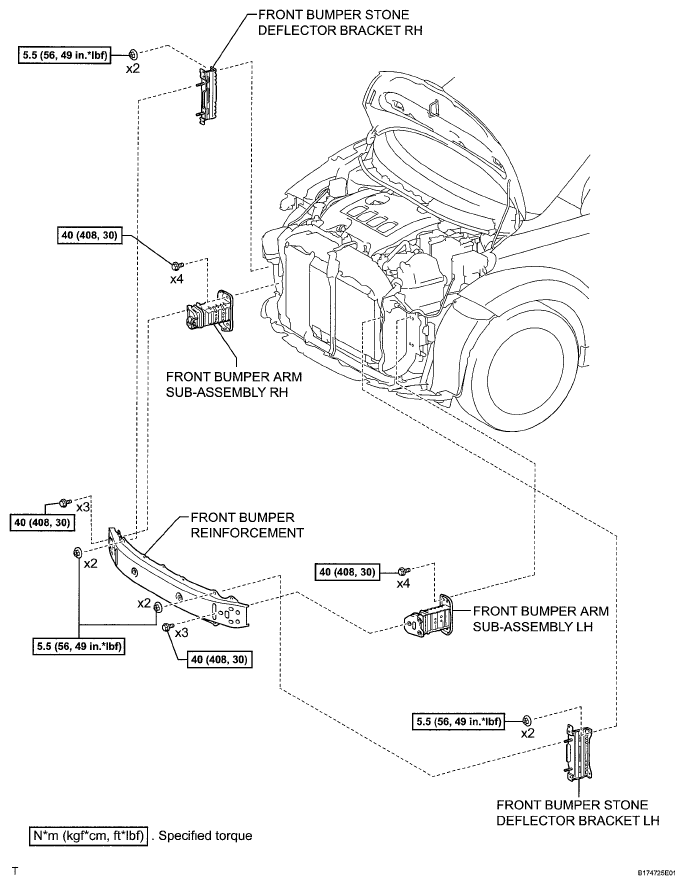

Fig 4: Front Bumper Replacement Components With Torque Specifications (4 Of 4)
G05403568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
