Parts Location

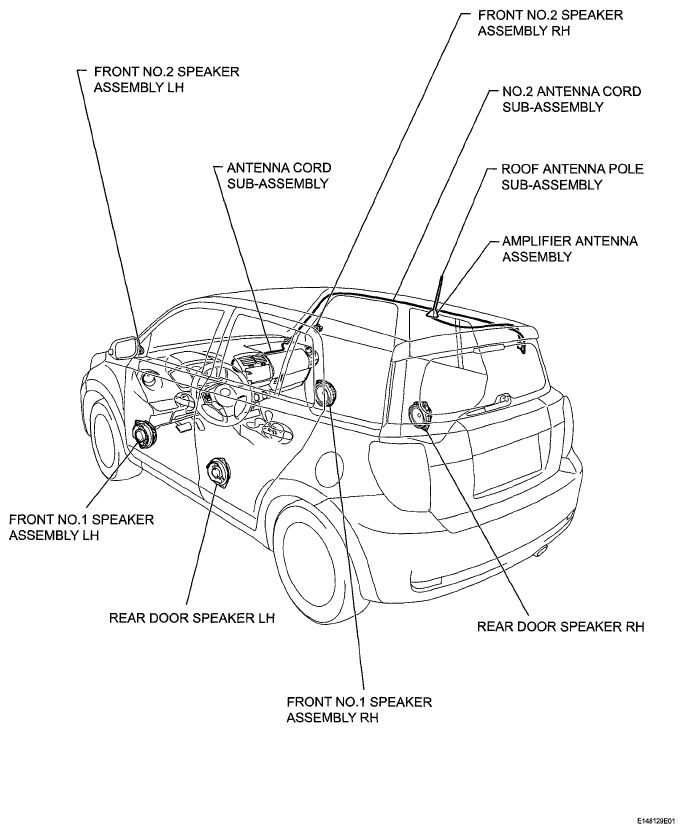

Fig 1: Identifying Audio And Visual System Components (1 Of 2)
G05402913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

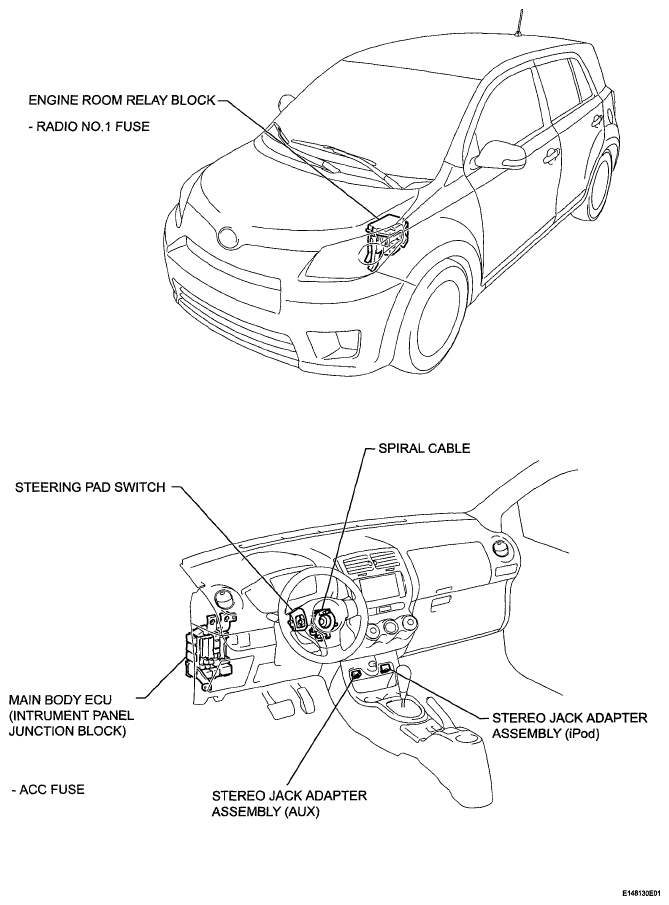

Fig 2: Identifying Audio And Visual System Components (2 Of 2)
G05402914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
