System Diagram

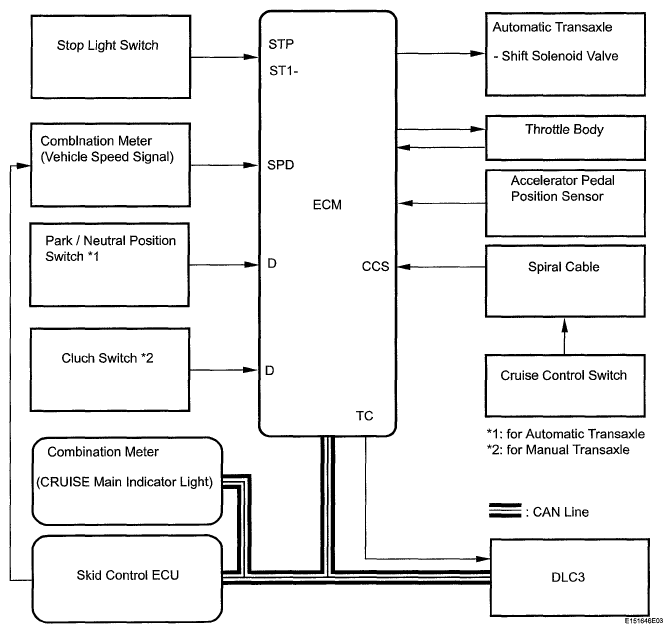

Fig 1: Cruise Control System Diagram
G05402350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Skid control ECU with actuator VSC operation signal CAN
ECM Combination Meter ECU CRUISE main indicator operation signal CAN
