Parts Location

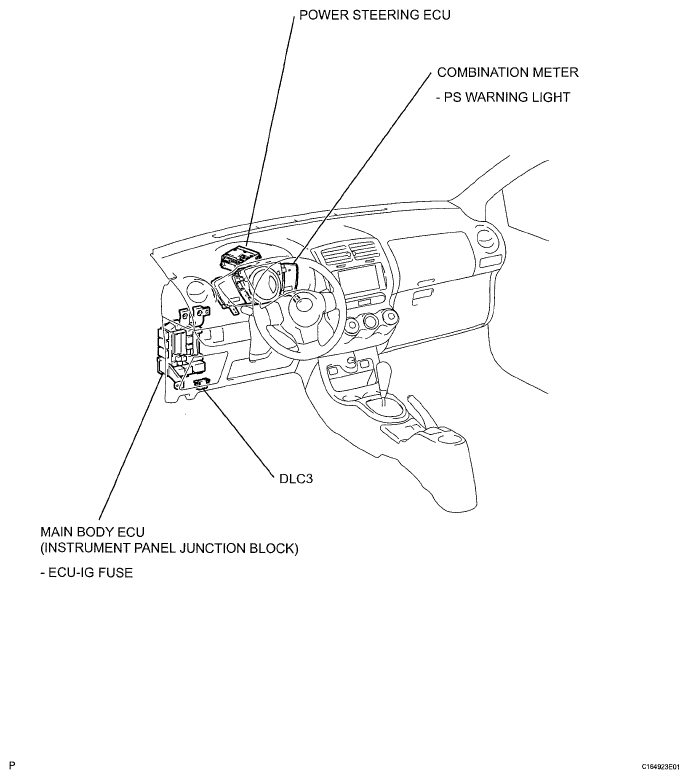

Fig 1: Identifying Power Steering System Parts Location (1 Of 2)
G05401514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

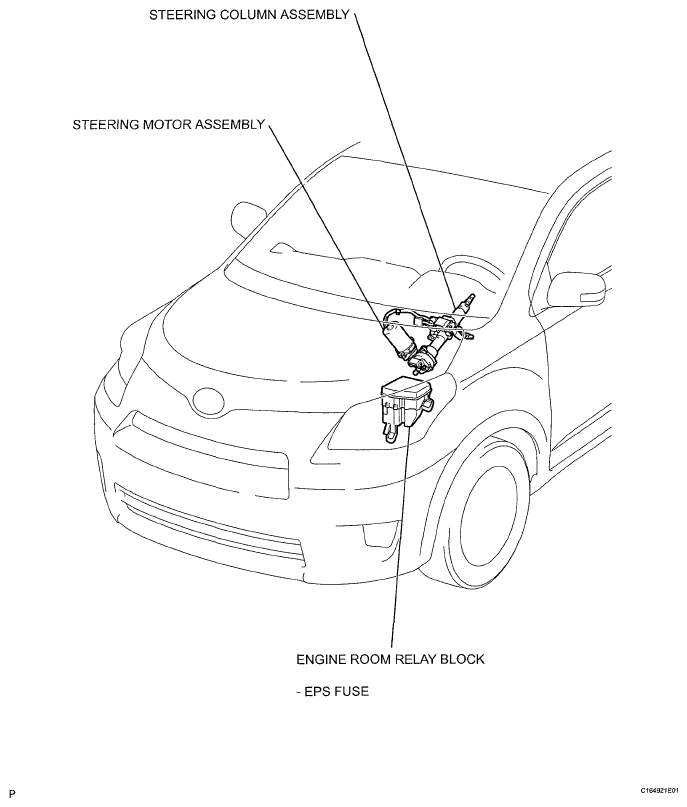

Fig 2: Identifying Power Steering System Parts Location (2 Of 2)
G05401515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
