Cylinder Block: Replacement

REPLACE RING PIN
NOTE: It is not necessary to remove the ring pins unless they are being replaced.
1. Using a plastic hammer, tap in the 2 new ring pins.
  Standard protrusion: 7.5 to 8.5 mm (0.295 to 0.335 in.)

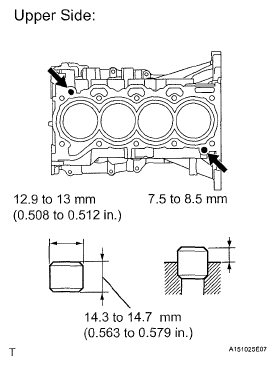

  Fig 1: Locating Ring Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE STUD BOLT
NOTE: If a stud bolt is deformed or the threads are damaged, replace it.
1. Using "TORX" socket E6, install the stud bolt as shown in the illustration.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

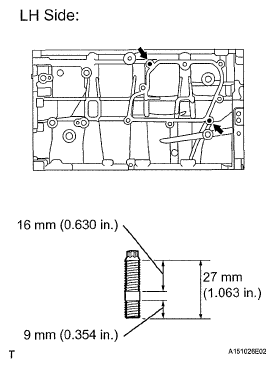

  Fig 2: Installing Stud Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REPLACE STRAIGHT PIN

NOTE: It is not necessary to remove the straight pins unless they are being replaced.

Using a plastic hammer, tap in the straight pin.

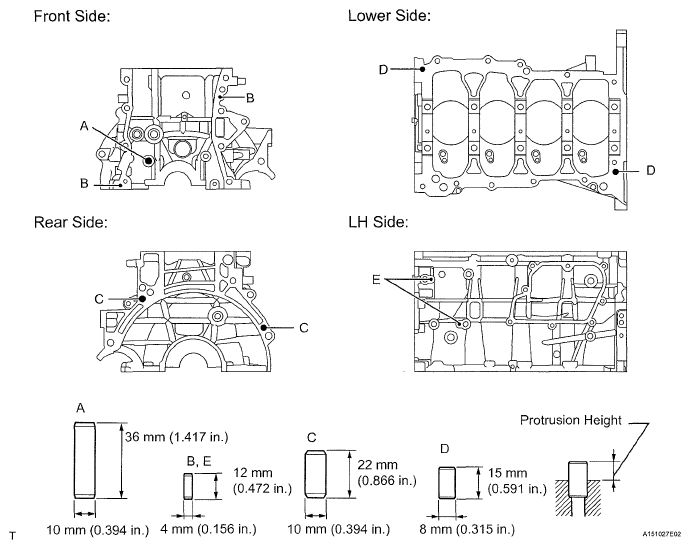

Fig 3: Locating Straight Pin Location

G05399023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard protrusion

STANDARD PROTRUSION

Item	Protrusion
Pin A	18.5 to 19.5 mm (0.729 to 0.768 in.)
Pin B	5.0 to 7.0 mm (0.197 to 0.276 in.)
Pin C	11.0 to 13.0 mm (0.433 to 0.512 in.)
Pin D	5.0 to 7.0 mm (0.197 to 0.276 in.)
Pin E	5.0 to 6.0 mm (0.197 to 0.236 in.)
