2ZR-FE Cooling: Thermostat: Components

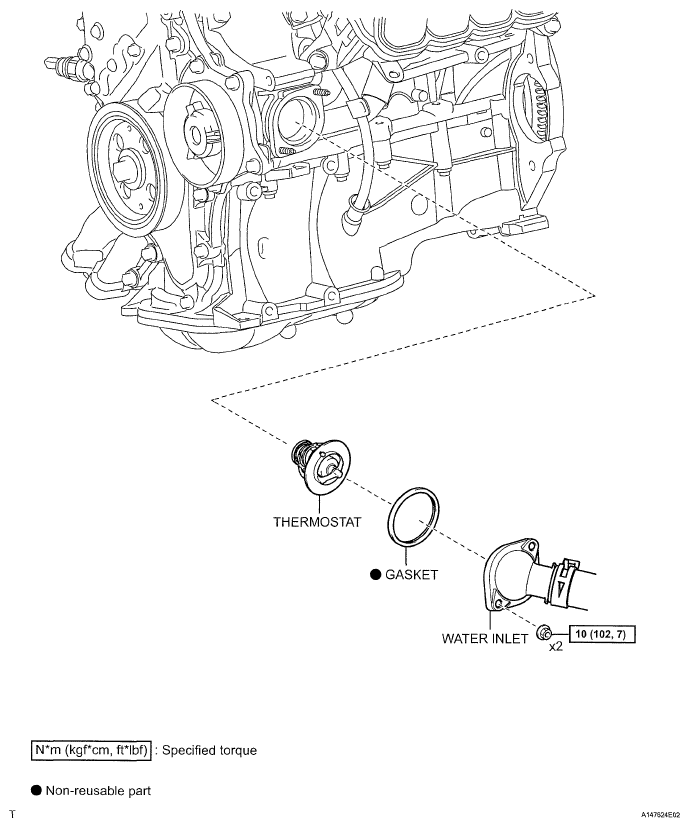

Fig 1: Thermostat Replacement Components With Torque Specifications

G05399651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
