Parts Location

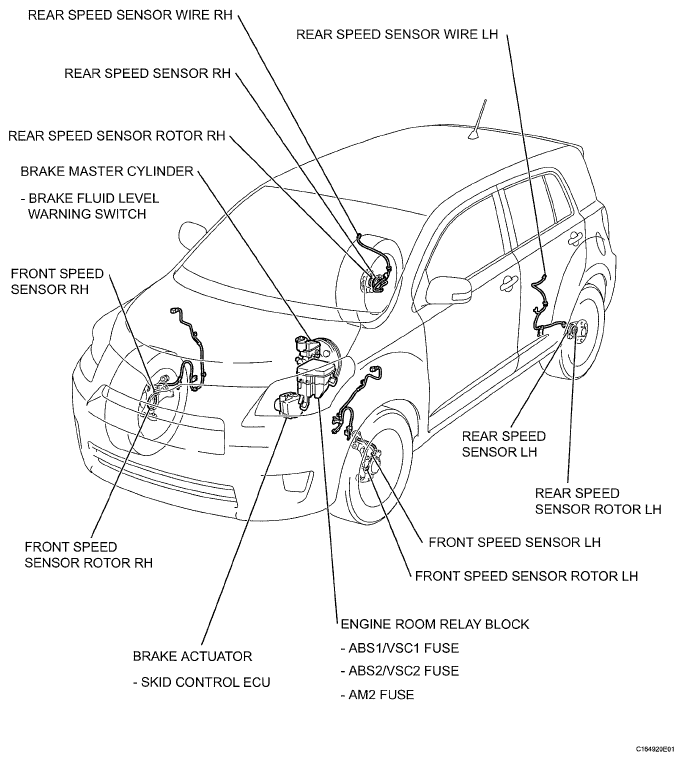

Fig 1: Identifying Brake Control System Parts Location (1 Of 2)
G05401143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

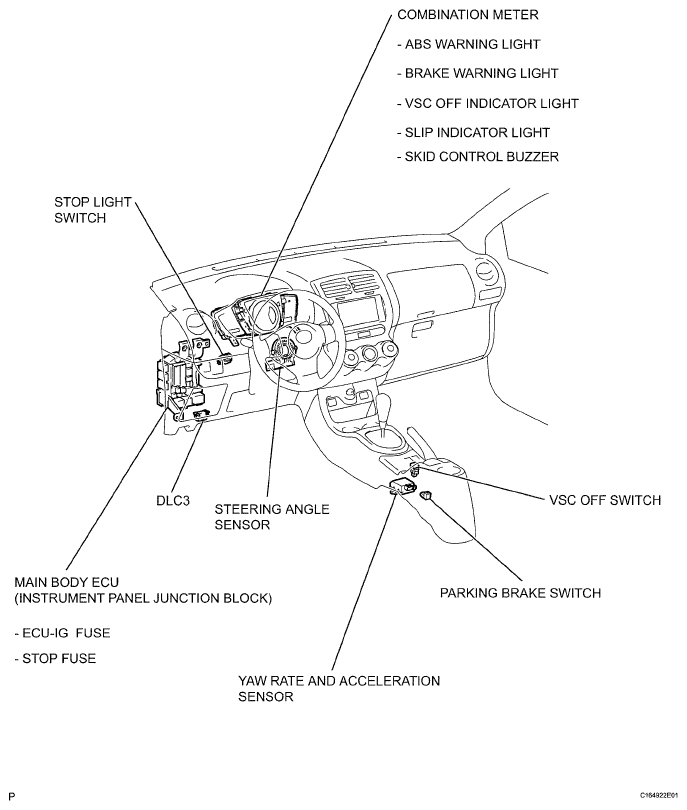

Fig 2: Identifying Brake Control System Parts Location (2 Of 2)
G05401144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
