Brake Actuator: Components

Fig 1: Brake Actuator Replacement Components With Torque Specifications (1 Of 3)
G05401263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

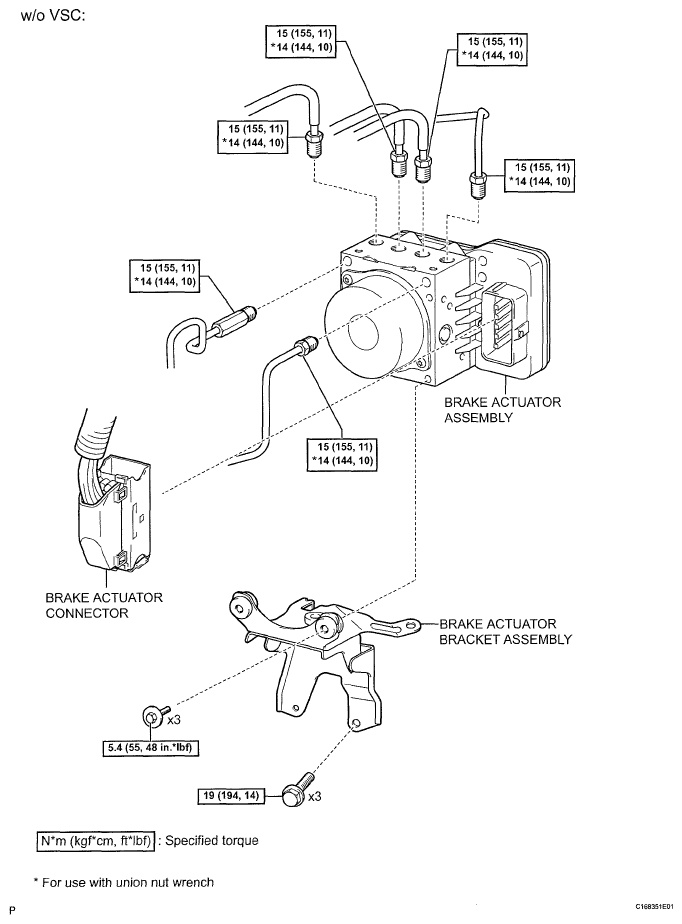

Fig 2: Brake Actuator Replacement Components With Torque Specifications (2 Of 3)
G05401264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

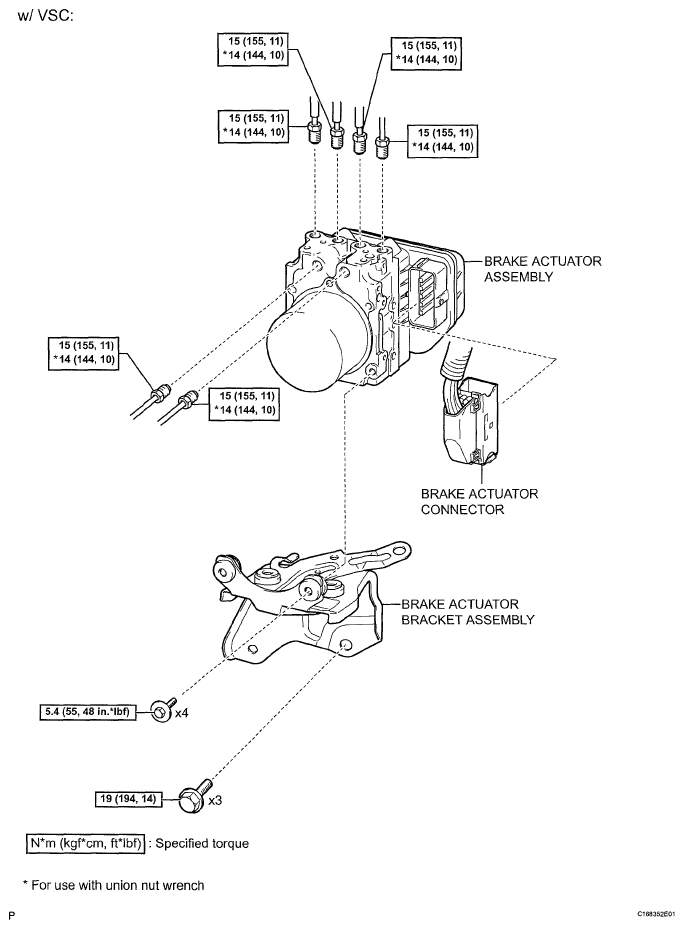

Fig 3: Brake Actuator Replacement Components With Torque Specifications (3 Of 3)
G05401265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
