Test Mode Procedure

  1. WARNING LIGHT AND INDICATOR LIGHT INITIAL CHECK
    1. Release the parking brake.
      NOTE: Before releasing the parking brake, move the shift lever to the P position for safety (for automatic transaxle model) or set chocks to hold the vehicle for safety (for manual transaxle model).

      HINT:

      When the parking brake is applied or the level of the brake fluid is low, the brake warning light comes on.

    2. When the ignition switch is turned to ON, check that the ABS warning and brake warning lights come on for approximately 3 seconds.

      HINT:

      • If the skid control ECU stores any DTCs, the ABS warning light will come on.
      • If the indicator remains on or does not come on, proceed to troubleshooting for the light circuits listed below.
        Fig 1: Identifying ABS Warning Light And Brake Warning Light
        G05401062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        DIAGNOSTIC PROCEDURE CHART

        Trouble Area See procedure
        ABS warning light circuit (Remains on) ABS WARNING LIGHT REMAINS ON
        ABS warning light circuit (Does not come on) ABS WARNING LIGHT DOES NOT COME ON
        Brake warning light circuit (Remains on) BRAKE WARNING LIGHT REMAINS ON
        Brake warning light circuit (Does not come on) BRAKE WARNING LIGHT DOES NOT COME ON
  2. TEST MODE PROCEDURE (SIGNAL CHECK) (Using Techstream)

    HINT:

    • If the ignition switch is turned from ON to ACC or OFF during Test Mode (signal check), DTCs recorded during the signal check function will be erased.
    • During Test Mode (signal check), the skid control ECU records all DTCs of the signal check function. By performing the Test Mode (signal check), the codes are erased if a normal condition is confirmed. The remaining codes are the codes where an abnormality was found.
    1. Procedure to enter Test Mode.
      1. Turn the ignition switch to OFF.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in the P position (for automatic transaxle model) or the parking brake is applied (for manual transaxle model).
      4. Connect the Techstream to the DLC3.
      5. Turn the ignition switch to ON.
      6. Turn the Techstream on.
      7. Enter the following menu items: Chassis / ABS/ VSC/TRAC / Signal Check.
      8. Check that the ABS warning light comes on for several seconds and then blink in Test Mode.

        HINT:

        If the ABS warning light does not blink, inspect the TS and CG terminal circuit and ABS warning light circuit.

        Fig 2: Identifying ABS Warning Light Blinking Pattern
        G05401063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        DIAGNOSTIC PROCEDURE CHART

        Trouble Area See procedure
        TS and CG terminal circuit TS AND CG TERMINAL CIRCUIT
        ABS warning light circuit (Remains on) ABS WARNING LIGHT REMAINS ON
        ABS warning light circuit (Does not come on) ABS WARNING LIGHT DOES NOT COME ON
  3. DECELERATION SENSOR CHECK (Using Techstream)
    1. Keep the vehicle stationary on a level surface for 1 second or more.
  4. SPEED SENSOR CHECK (Using Techstream)
    1. Check the speed sensor signal.
      1. Drive the vehicle straight-ahead.

        Accelerate the vehicle to a speed of 45 km/h (28 mph) or more for several seconds and check that the ABS warning light goes off.

        • The sensor check may not be completed if wheel spin occurs.
        • The ABS warning light blinks when the sensor check has been completed and the brake pedal is depressed.
        • The ABS warning light comes on immediately after a malfunction has been detected during the speed sensor check.
    2. Stop the vehicle.

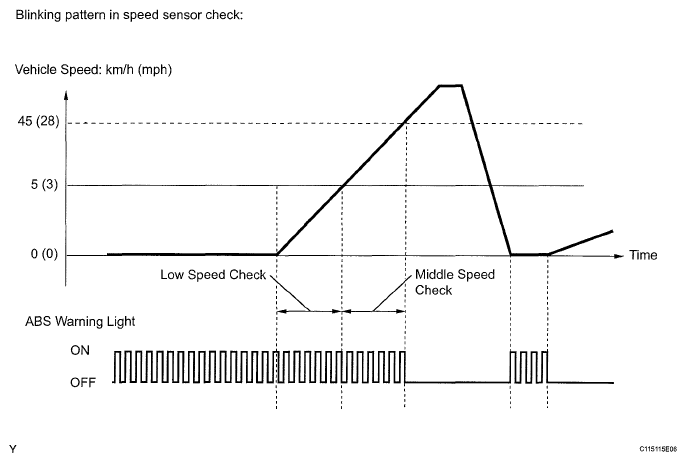

      Fig 3: Identifying ABS Warning Light Blinking Pattern
      G05401064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Before performing the speed sensor check, complete the deceleration sensor check.
      • The speed sensor check may not be completed if the speed sensor check is started while turning the steering wheel or spinning the wheels.
      • After the ABS warning light goes off and if the vehicle speed exceeds 80 km/h (50 mph), a sensor check code will be stored again. Decelerate or stop the vehicle before the speed reaches 80 km/h (50 mph).
      • If the sensor check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.

      HINT:

      When the sensor check has been completed, the ABS warning light goes off while driving and blinks in the Test Mode pattern while stationary.

  5. END OF SENSOR CHECK (Using Techstream)
    1. If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops and the ABS warning light is off while the vehicle is driving.
      NOTE: If the sensor check is not completed, the ABS warning light blinks even while the vehicle is driving and the ABS does not operate.
      Fig 4: Identifying ABS Warning Light Blinking Pattern
      G05401065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. READ DTC OF SIGNAL CHECK FUNCTION (Using Techstream)
    1. Read the DTC(s) by following the tester screen.
      NOTE:
      • If only the DTCs are displayed, repair the malfunction area and clear the DTCs.
      • If the DTCs or Test Mode codes (DTC of signal check function) are displayed, repair the malfunction area, clear the DTCs and perform Test Mode inspection.

      HINT:

      See the list of DTCs (See procedure A).

  7. TEST MODE PROCEDURE (SIGNAL CHECK) (Using SST Check Wire)

    HINT:

    • If the ignition switch is turned from ON to ACC or OFF during Test Mode (signal check), DTCs recorded during the signal check function will be erased.
    • During Test Mode (signal check), the skid control ECU records all DTCs of the signal check function. By performing the Test Mode (signal check), the codes are erased if a normal condition is confirmed. The remaining codes are the codes where an abnormality was found.
    1. Procedure to enter Test Mode.
      1. Turn the ignition switch to OFF.
      2. Check that the steering wheel is in the straight-ahead position.
      3. Check that the shift lever is in the P position (for automatic transaxle model) or the parking brake is applied (for manual transaxle model).
      4. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

        Fig 5: Identifying DLC3 Connector Terminals TS And CG
        G05401066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Turn the ignition switch to ON.
      6. Check that the ABS warning light comes on for several seconds and then blink in Test Mode.

        HINT:

        If the ABS warning light does not blink, inspect the TS and CG terminal circuit and ABS warning light circuit.

        Fig 6: Identifying ABS Warning Light Blinking Pattern
        G05401067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        DIAGNOSTIC PROCEDURE CHART

        Trouble Area See procedure
        TS and CG terminal circuit TS AND CG TERMINAL CIRCUIT
        ABS warning light circuit (Remains on) ABS WARNING LIGHT REMAINS ON
        ABS warning light circuit (Does not come on) ABS WARNING LIGHT DOES NOT COME ON
  8. DECELERATION SENSOR CHECK (Using SST Check Wire)
    1. Keep the vehicle stationary on a level surface for 1 second or more.
  9. SPEED SENSOR CHECK (Using SST Check Wire)
    1. Check the speed sensor signal.
      1. Drive the vehicle straight-ahead.

        Accelerate the vehicle to a speed of 45 km/h (28 mph) or more for several seconds and check that the ABS warning light goes off.

        • The sensor check may not be completed if wheelspin occurs.
        • The ABS warning light blinks when the sensor check has been completed and the brake pedal is depressed.
        • The ABS warning light comes on immediately after a malfunction has been detected during the speed sensor check.
    2. Stop the vehicle.

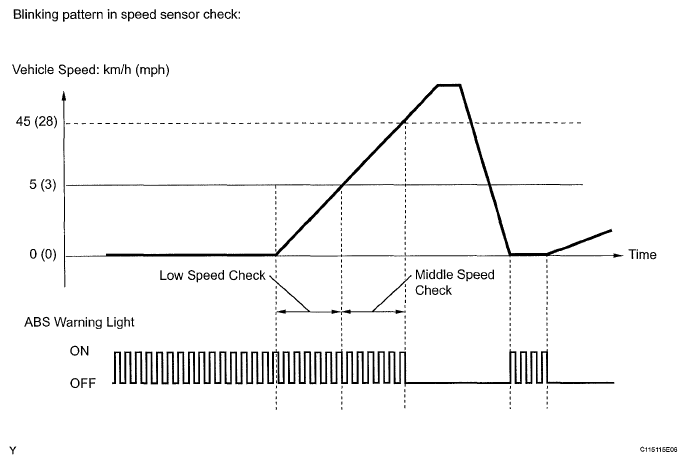

      Fig 7: Identifying ABS Warning Light Blinking Pattern
      G05401068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Before performing the speed sensor check, complete the deceleration sensor check.
      • The speed sensor check may not be completed if the speed sensor check is started while turning the steering wheel or spinning the wheels.
      • After the ABS warning light goes off, if vehicle speed exceeds 80 km/h (50 mph), a sensor check code will be stored again. Decelerate or stop the vehicle before the speed reaches 80 km/h (50 mph).
      • If the sensor check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.

      HINT:

      When the sensor check has been completed, the ABS warning light goes off while driving and blinks in the Test Mode pattern while stationary.

  10. END OF SENSOR CHECK (for Using SST Check Wire)
    1. If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops and the ABS warning light is off while the vehicle is driving.
      NOTE: If the sensor check is not completed, the ABS warning light blinks even while the vehicle is driving and the ABS does not operate.
      Fig 8: Identifying ABS Warning Light Blinking Pattern
      G05401069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. READ DTC OF SIGNAL CHECK FUNCTION (for Using SST Check Wire)
    1. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

      Fig 9: Identifying DLC3 Connector Terminals TS And CG
      G05401070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Count the number of blinks of the ABS warning light.

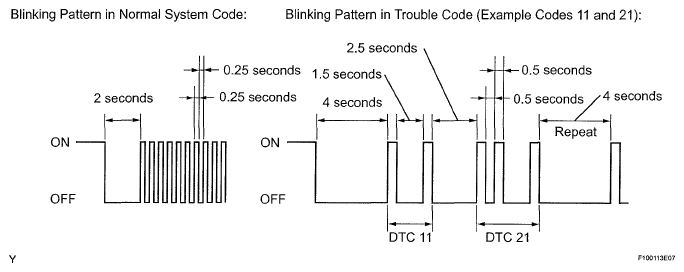

      Fig 10: Blinking Pattern In Normal System Code And Trouble Code
      G05401071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If only the DTCs are displayed, repair the malfunction area and clear the DTCs.
      • If the DTCs or Test Mode codes (DTC of signal check function) are displayed, repair the malfunction area, clear the DTCs and perform Test Mode inspection.

      HINT:

      • If more than 1 malfunction is detected at the same time, the lowest numbered code will be displayed first.
      • See the list of DTCs (See procedure A).
    3. After performing the check, disconnect SST from terminals TS and CG, and TC and CG of the DLC3 and turn the ignition switch to OFF.
    4. Turn the ignition switch to ON.

      HINT:

      • If the ignition switch is not turned to ON after SST is removed from the DLC3, the previous Test Mode will continue.
      • If the ignition switch is turned to ON with terminals TS and CG shorted, the previous Test Mode will continue.
  12. DTC OF TEST MODE (SIGNAL CHECK) FUNCTION (Procedure "A")

    ABS sensor:

    DTC CHART

    DTC Code Detection Item Trouble Area
    C1271/71 Low output signal of front speed sensor RH
    • Front speed sensor RH
    • Sensor installation
    • Speed sensor rotor
    C1272/72 Low output signal of front speed sensor LH
    • Front speed sensor LH
    • Sensor installation
    • Speed sensor rotor
    C1273/73 Low output signal of rear speed sensor RH
    • Rear speed sensor RH
    • Sensor installation
    • Speed sensor rotor
    C1274/74 Low output signal of rear speed sensor LH
    • Rear speed sensor LH
    • Sensor installation
    • Speed sensor rotor
    C1275/75 Abnormal change in output signal of front speed sensor RH Speed sensor rotor
    C1276/76 Abnormal change in output signal of front speed sensor LH Speed sensor rotor
    C1277/77 Abnormal change in output signal of rear speed sensor RH Speed sensor rotor
    C1278/78 Abnormal change in output signal of rear speed sensor LH Speed sensor rotor
    C1279/79 Deceleration sensor output voltage malfunction
    • Deceleration sensor
    • Sensor installation

    HINT:

    The codes in this table are output only in Test Mode (signal check).
