Hood Lock Control Cable Assembly: Installation

INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

Pass the hood lock control cable assembly into the engine compartment.

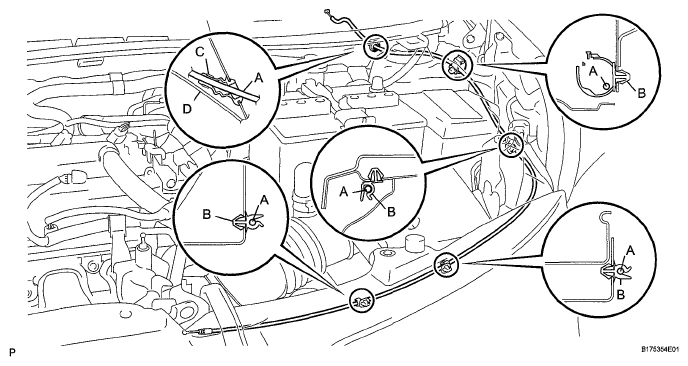

Fig 1: Identifying Hood Lock Control Cable Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PART NAME CHART

Area	Part Name	Area	Part Name
A	Hood lock control cable	C	Grommet
B	Clamp	D	Fender liner

INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
1. Install the hood lock control lever sub-assembly and connect the hood lock control cable.

  Fig 2: Connecting Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK ASSEMBLY
1. Apply MP grease to the sliding areas of the lock.

  Fig 3: Locating Sliding Areas Of Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hood lock control cable.

  Fig 4: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the hood lock assembly with the 3 bolts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  Fig 5: Locating Bolts And Hood Lock Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT HOOD SUB-ASSEMBLY (See ADJUSTMENT )
ADJUST HOOD SUB-ASSEMBLY (See ADJUSTMENT )
INSTALL FRONT FENDER LINER LH
1. Install the front fender liner LH with 3 new grommets.
2. Install the 9 clips and 6 screws.
INSTALL SIDE MUDGUARD (See INSTALLATION )
INSTALL ROCKER PANEL MOLDING COVER (See INSTALLATION )
INSTALL FRONT WHEEL
