2ZR-FE Fuel
>>
Fuel System
>>
System Diagram
System Diagram

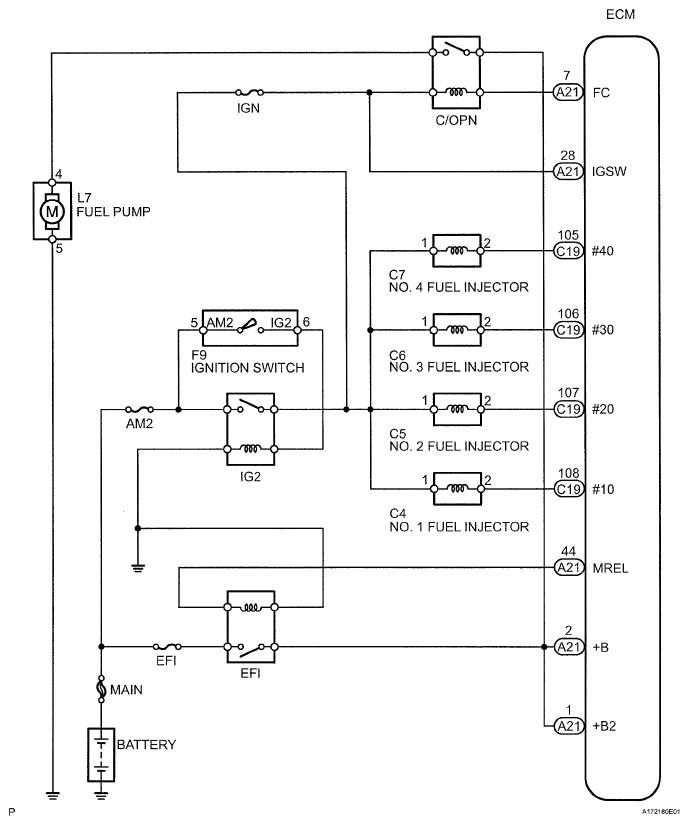

Fig 1: Fuel System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
