Engine Unit: Components

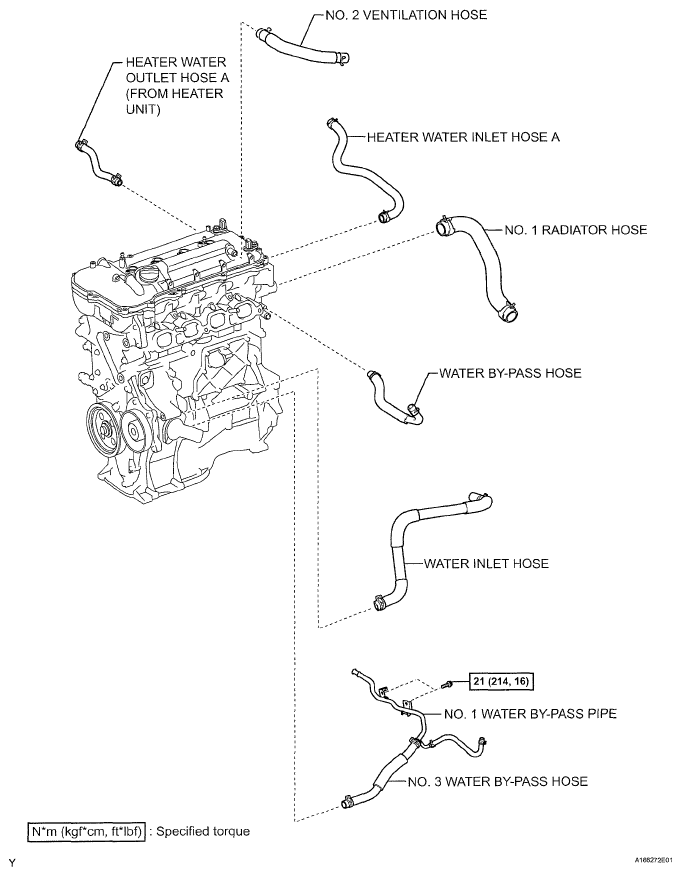

Fig 1: Engine Unit Components And Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

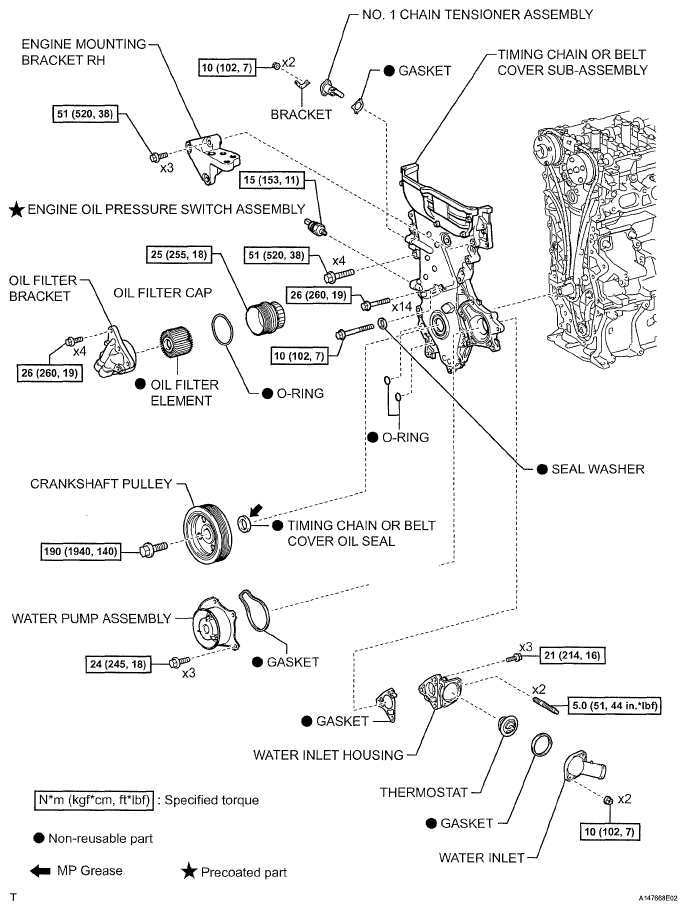

Fig 2: Engine Unit Components And Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

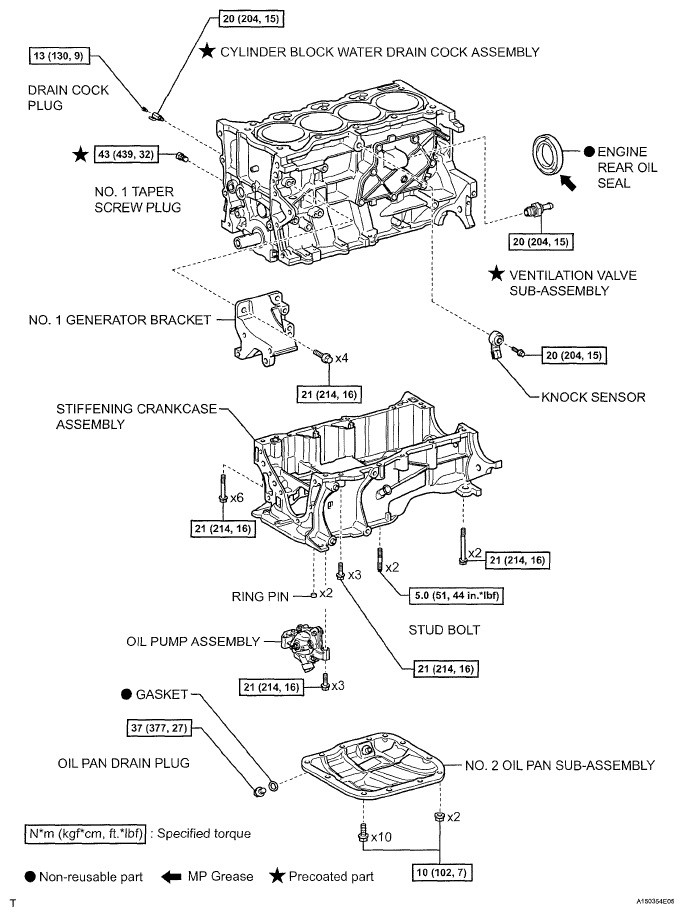

Fig 3: Engine Unit Components And Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

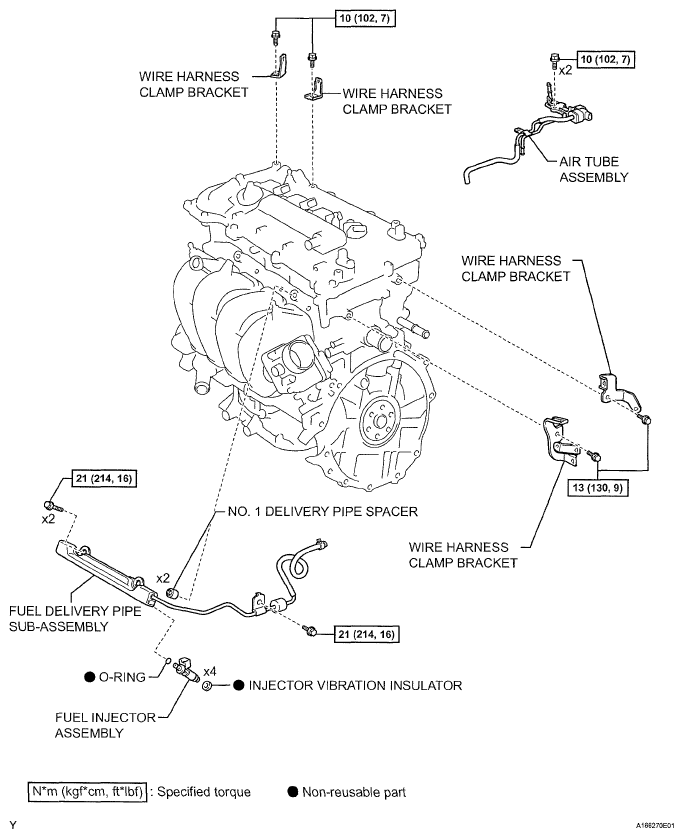

Fig 4: Engine Unit Components And Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

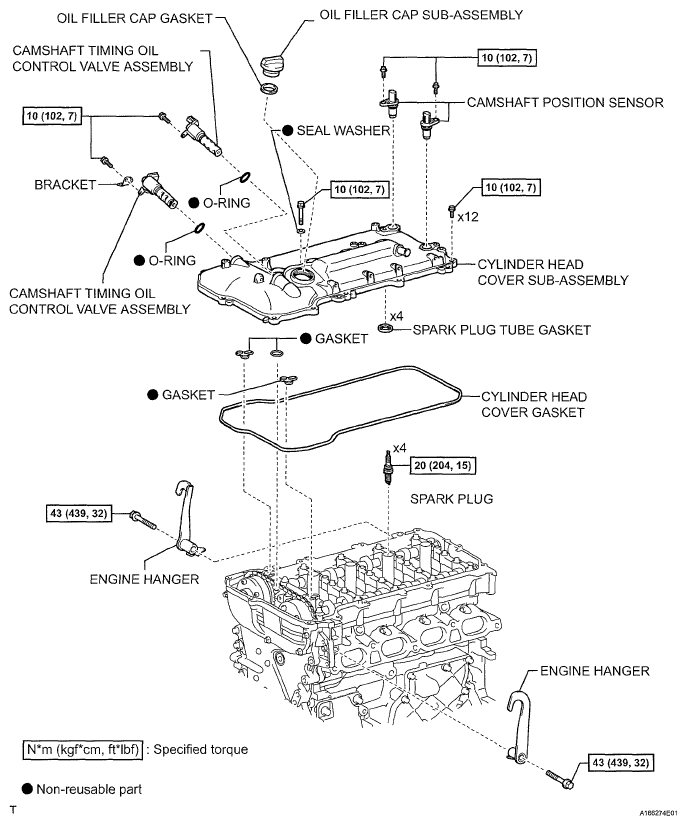

Fig 5: Engine Unit Components And Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

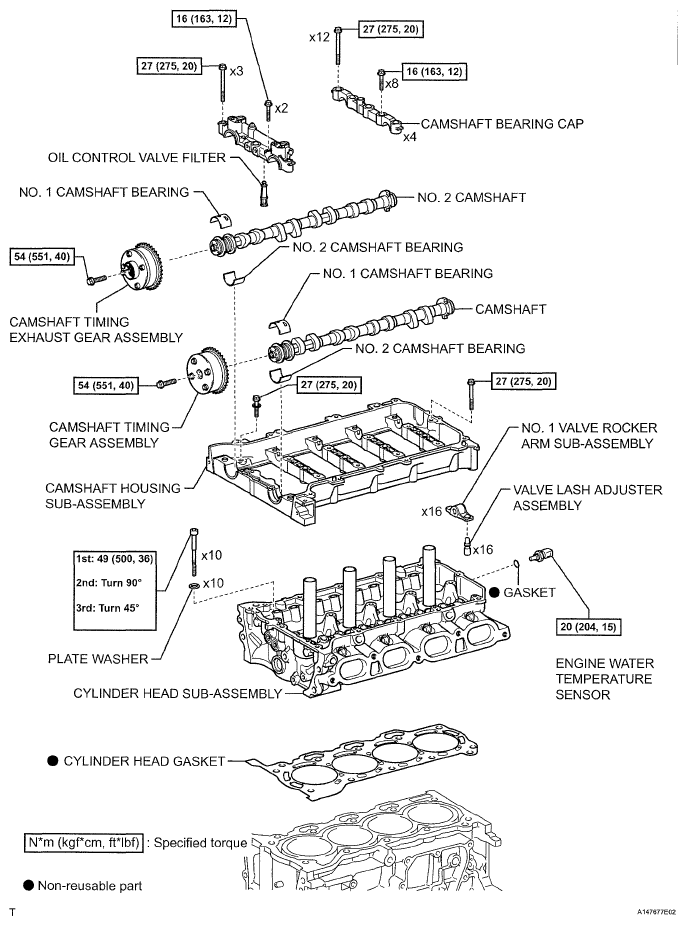

Fig 6: Engine Unit Components And Torque Specifications (6 Of 9)

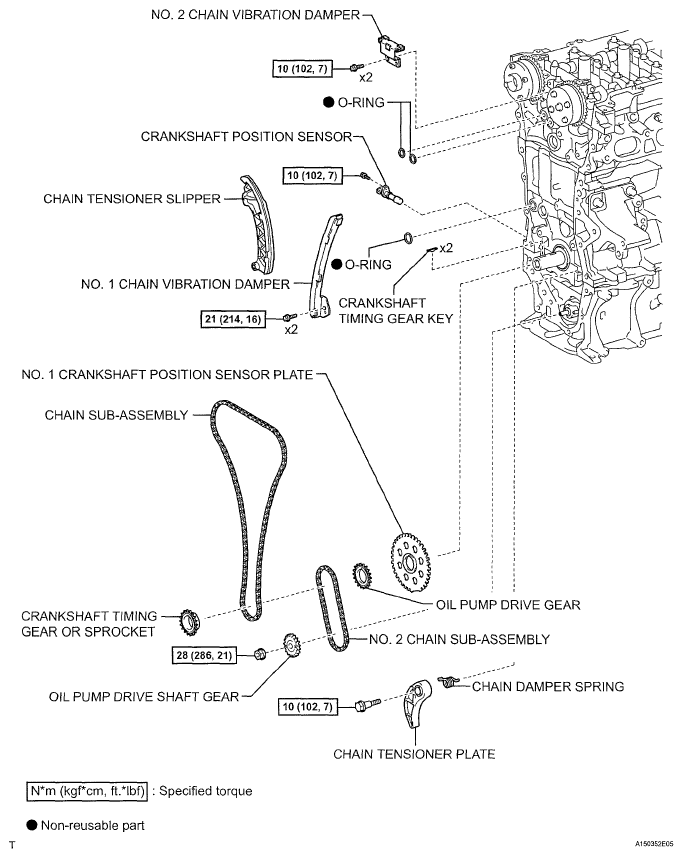

Fig 7: Engine Unit Components And Torque Specifications (7 Of 9)

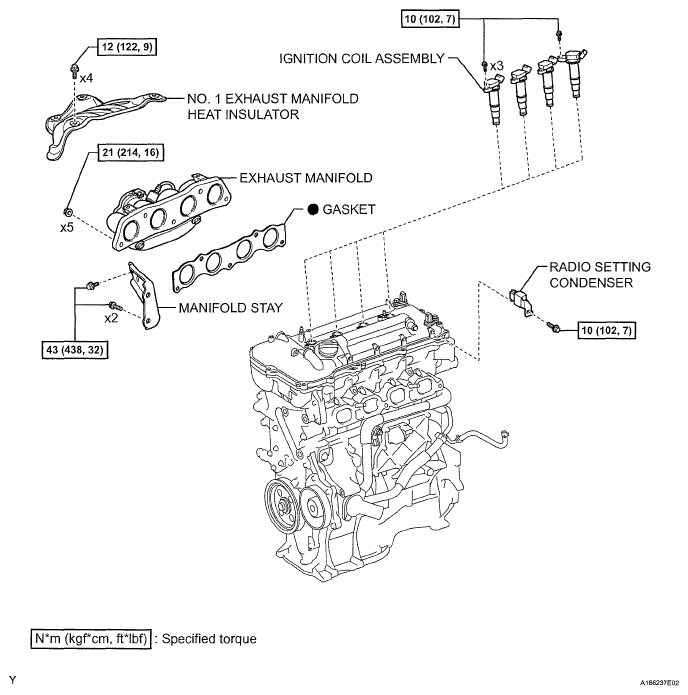

Fig 8: Engine Unit Components And Torque Specifications (8 Of 9)

Fig 9: Engine Unit Components And Torque Specifications (9 Of 9)
