Engine Assembly: Components

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

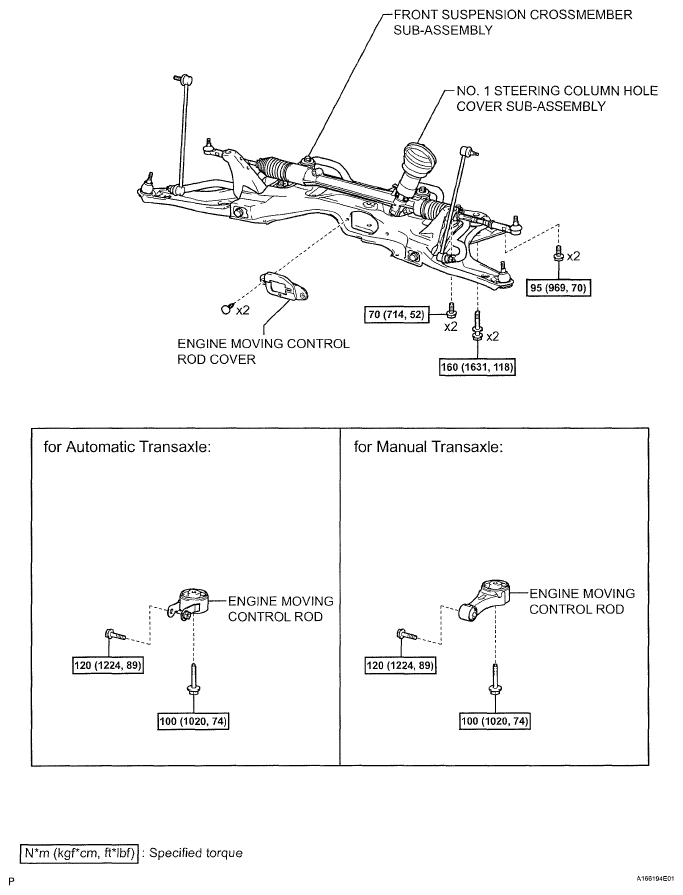

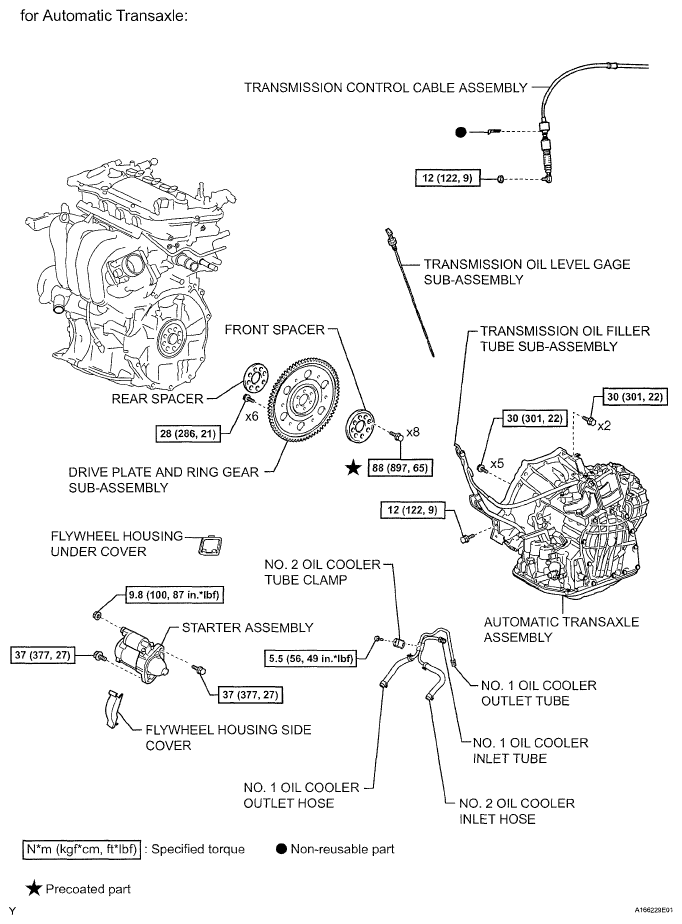

Fig 2: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

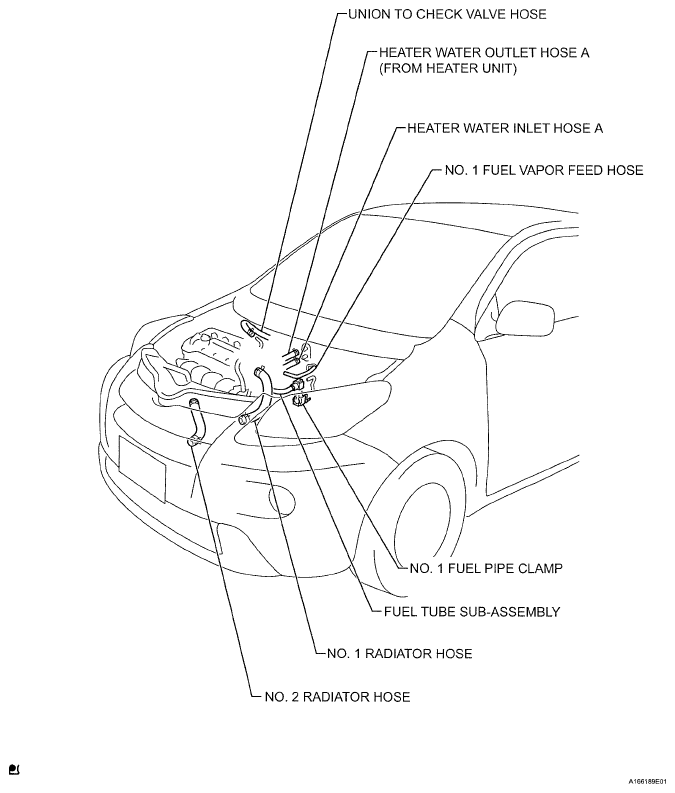

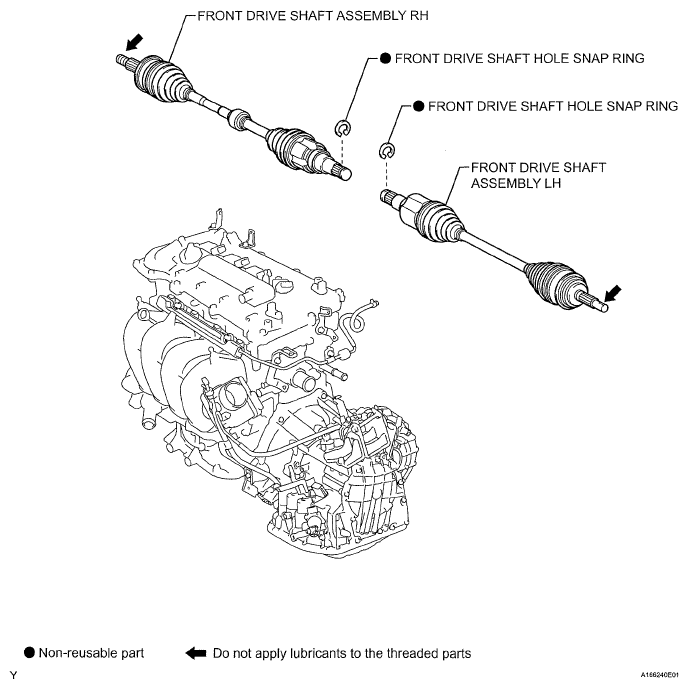

Fig 3: Identifying Engine Assembly Components (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

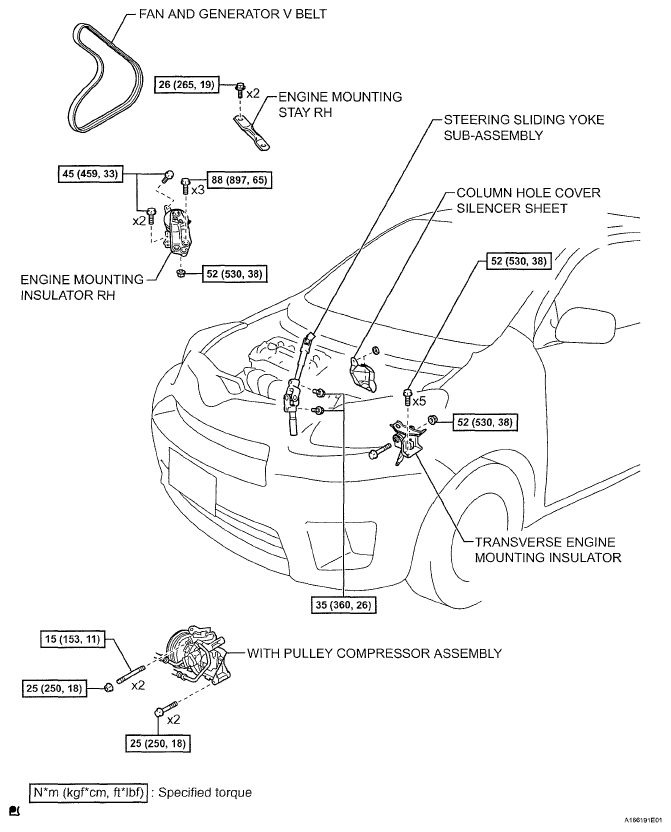

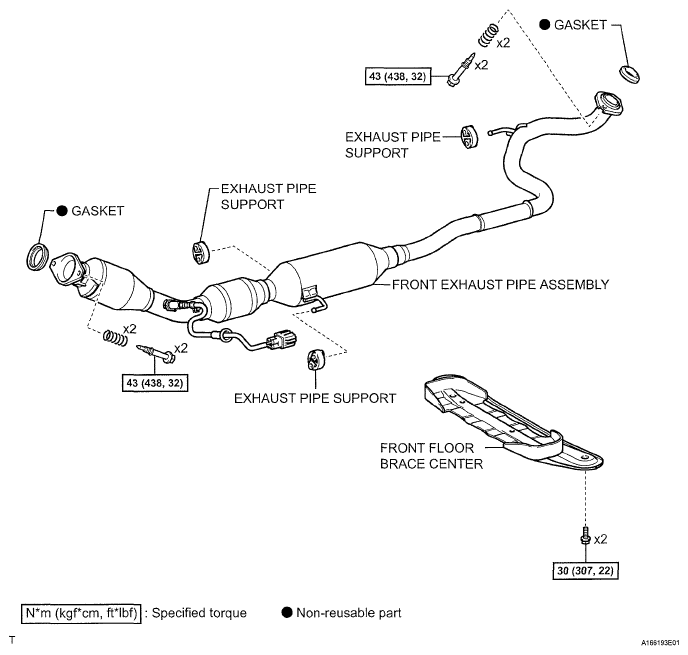

Fig 4: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

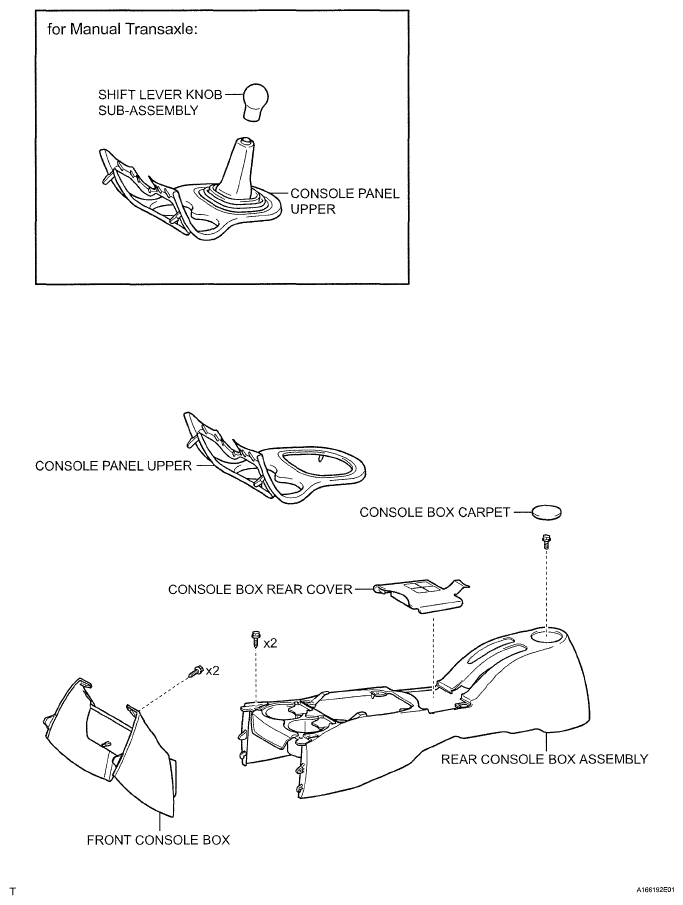

Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

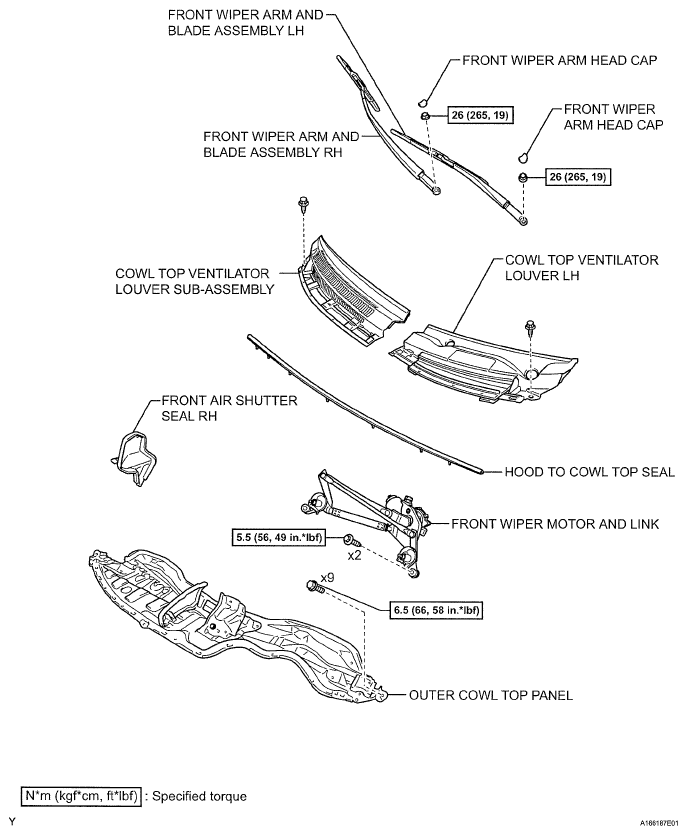

Fig 6: Identifying Engine Assembly Components (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

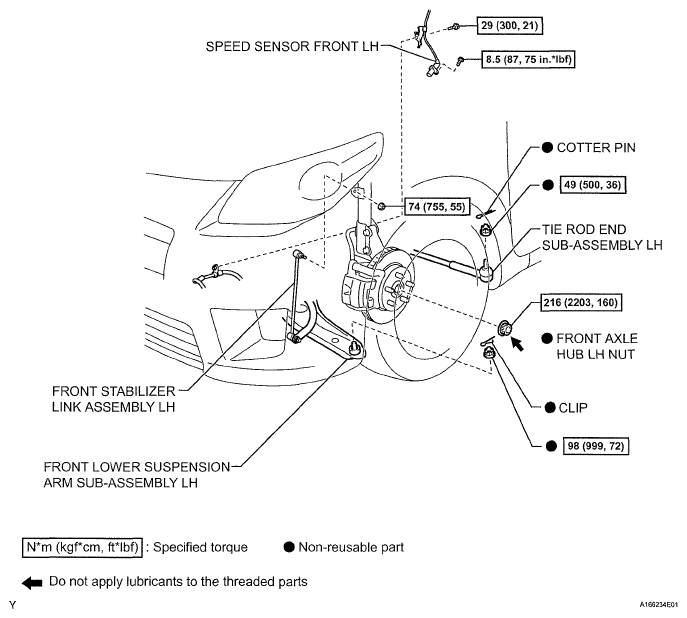

Fig 7: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

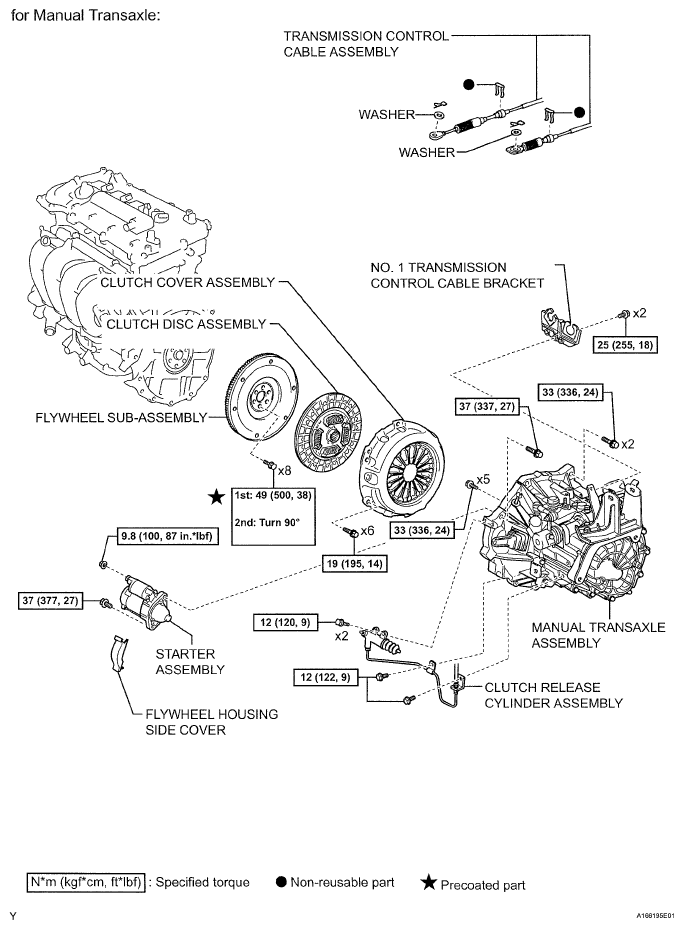

Fig 8: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Assembly Replacement Components With Torque Specifications (9 Of 12)

Fig 10: Identifying Engine Assembly Components (10 Of 12)

Fig 11: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications (11 Of 13)

Fig 12: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications (12 Of 13)
