Home >> Scion >> 2009 >> xB Standard >> Repair and Diagnosis >> Transmission >> E351 Manual Transaxle >> Output Shaft >> Components

Output Shaft: Components

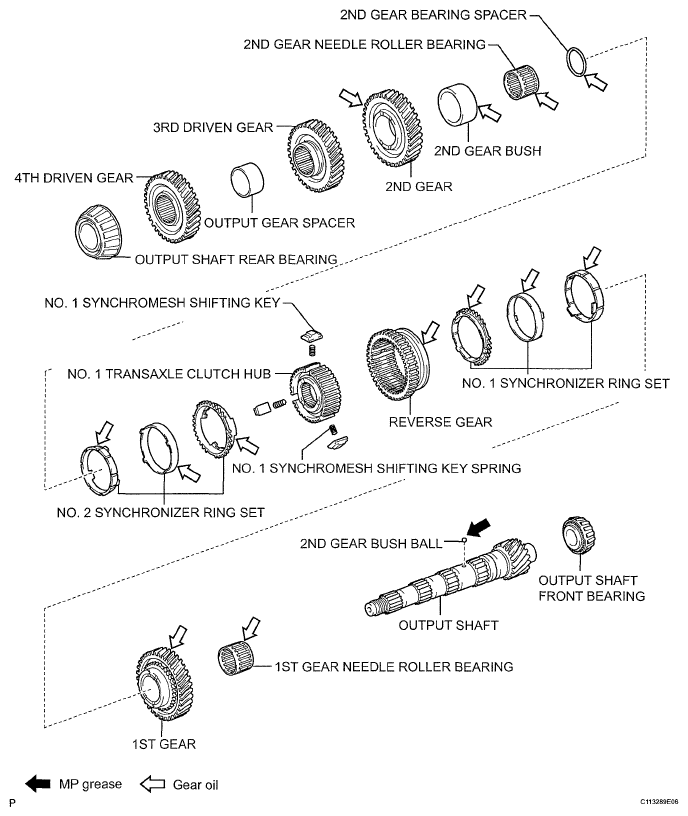

Fig 1: Identifying Output Shaft Components

G05388998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
