Input Shaft: Components

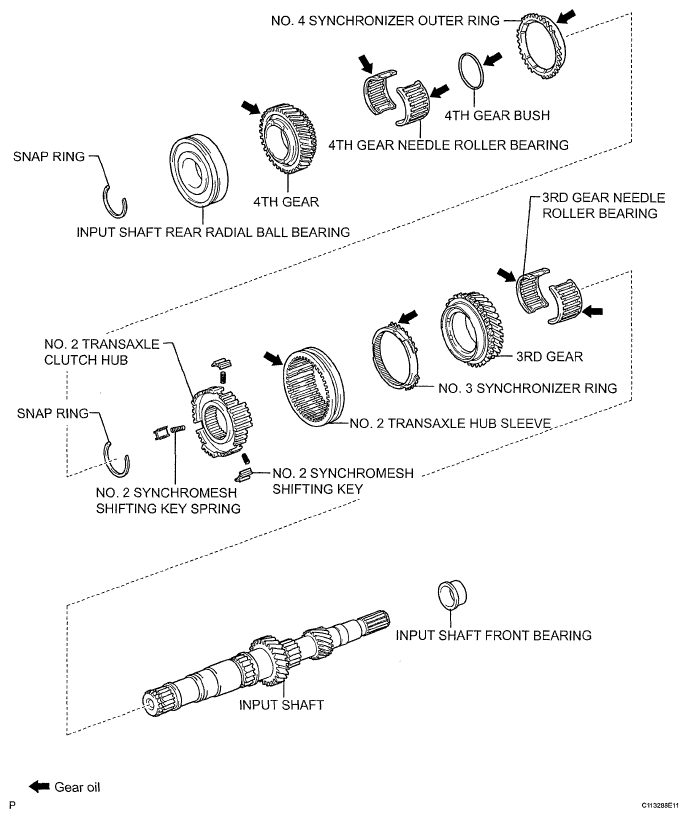

Fig 1: Identifying Input Shaft Components

G05388955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
