Differential Case: Components

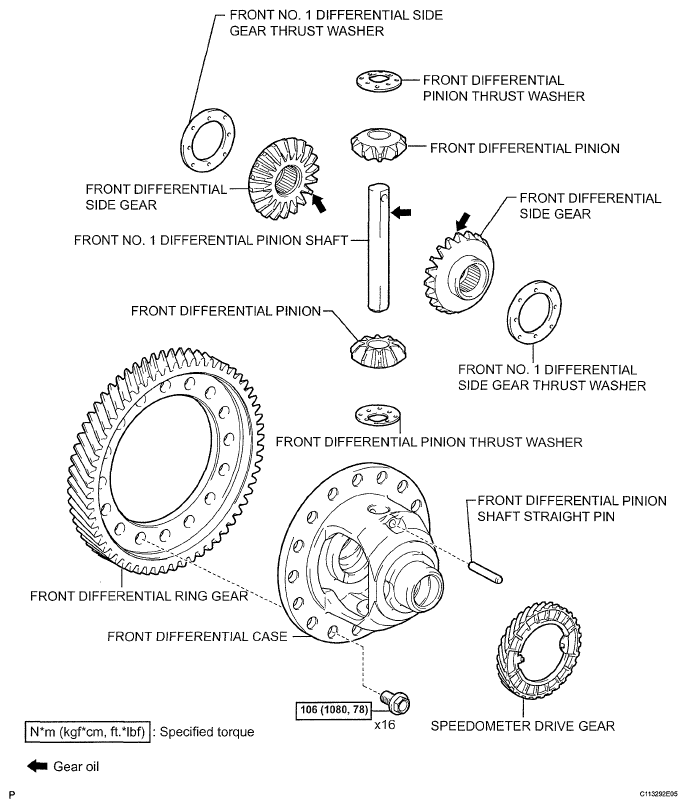

Fig 1: Identifying Differential Case Components With Tightening Torque
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
