Clutch Accumulator: Components

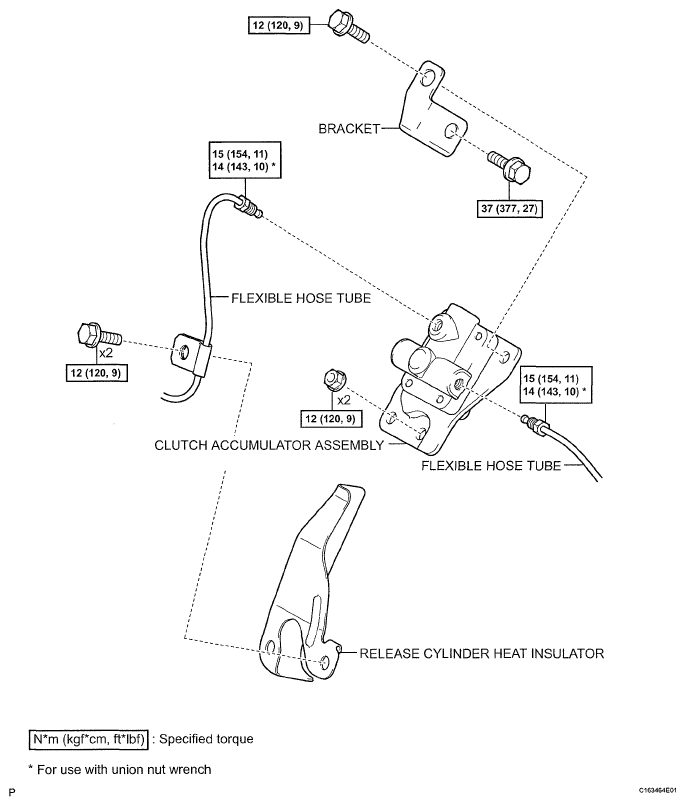

Fig 1: Locating Clutch Accumulator Components With Torque Specifications

G05388695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
