System Diagram: Notes

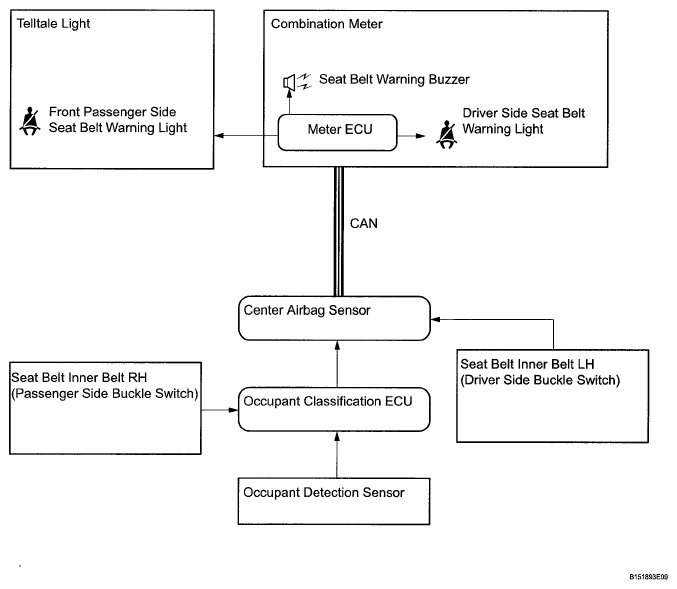

Fig 1: Seat Belt Warning System Diagram

G05390530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
