Front Seat Inner Belt Assembly: Inspection

  1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      2 - 4 Tongue plate fastened 10 kΩ or higher
      2 - 4 Tongue plate released Below 1 Ω

      If the result is not as specified, replace the front seat inner belt.

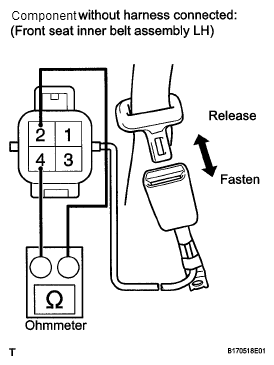

      Fig 1: Inspecting Front Seat Inner Belt Assembly LH
      G05390547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      1 - 2 Tongue plate fastened 10 kΩ or higher
      1 - 2 Tongue plate released Below 1 Ω

      If the result is not as specified, replace the front seat inner belt.
