Fuel Pump: Installation

1. Install a new fuel suction tube set gasket onto the fuel tank.
   Fig 1: Identifying Fuel Suction Tube To Fuel Tank

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the protrusion on the fuel pump with the cutout on the fuel tank and install the fuel suction with pump and gauge tube assembly.
   NOTE: The arm of the sender gauge should not be bent.
   Fig 2: Aligning Protrusion On Fuel Pump

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. While holding the fuel suction tube assembly to prevent it from tilting, align the starting mark on the fuel tank with the mark on the retainer and tighten the fuel pump gauge retainer 180° by hand.
   NOTE: Replace the fuel pump gauge retainer.
   Fig 3: Aligning Starting Mark On Fuel Tank

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, further turn the retainer 360° clockwise from the screw starting point and align the ribs on the retainer with alignment marks on the fuel tank, as shown in the illustration.

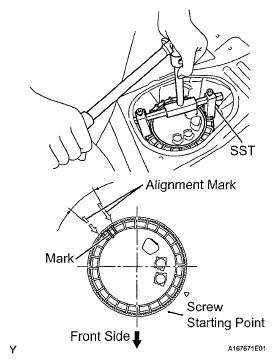

   Fig 4: Aligning Marks On Fuel Tank

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Align the ribs on the fuel pump gauge retainer with the tips of SST.
   • At the point where the retainer is turned 90° from the start of the thread, push the retainer in from the opposite side to the start of the thread. Check that the thread on the retainer is properly engaged with the one on the fuel tank.

1. Insert the fuel tank main tube.
2. Install the tube joint clip.
   NOTE:

   • Check that there are no scratches or foreign matter on the connecting parts.
   • Check that the fuel tube joint is inserted securely.
   • Check that the fuel tube joint clip is on the collar of the fuel tube joint.
   • After installing the tube joint clips, check that the fuel tube joints have not been pulled off.
   • Do not damage any clips. If a clip is damaged, replace it.

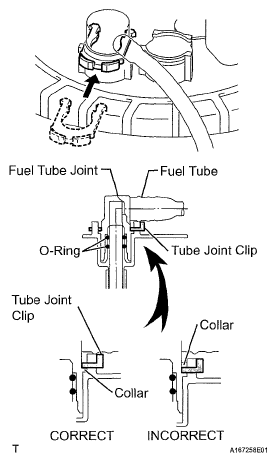

     Fig 5: Connecting Fuel Tank Main Tube Sub-Assembly

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the fuel pump connector.
   Fig 6: Locating Fuel Pump Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear floor service hole cover with new butyl tape.
   Fig 7: Identifying Rear Floor Service Hole Cover With New Butyl Tape

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear seat cushion leg sub-assembly with the 5 bolts in the order shown in the illustration.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   Fig 8: Locating Rear Seat Cushion Leg Sub-Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seat cushion under cover.
3. Install the 2 rear seat cushion side covers.
   Fig 9: Locating Rear Seat Cushion Side Covers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pass the rear seat inner belt through the rear seat cushion cover pad slit.
5. Engage the 3 hooks and install the rear seat cushion cover pad.
   NOTE: Make sure that the 2 rear seat cushion lock hooks and the rear seat cushion frame are securely engaged.

Fig 10: Identifying Rear Seat Cushion Cover Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See FUEL SYSTEM  )
