Steering Knuckle: Components

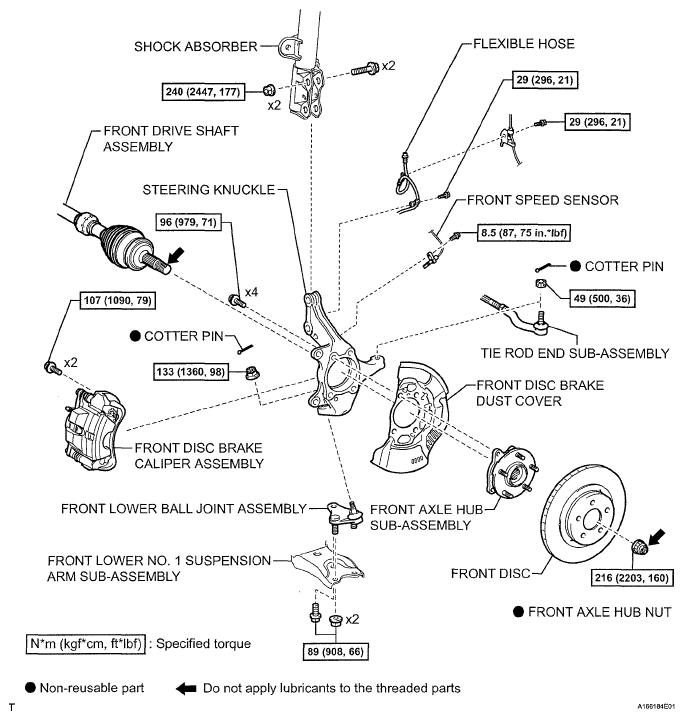

Fig 1: Steering Knuckle Replacement Components With Torque Specifications

G05389168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
