Front Drive Shaft Assembly: Components

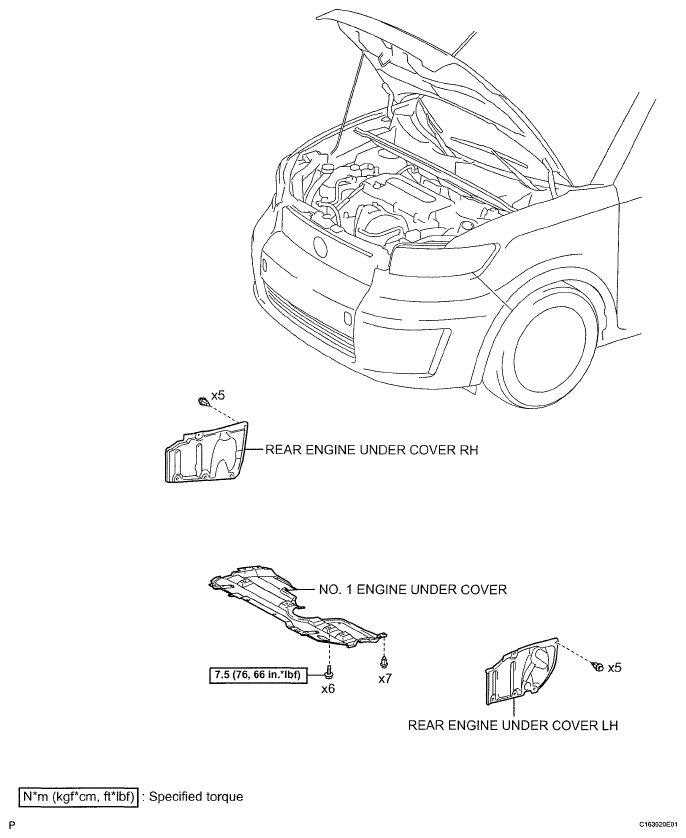

Fig 1: Front Drive Shaft Assembly Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

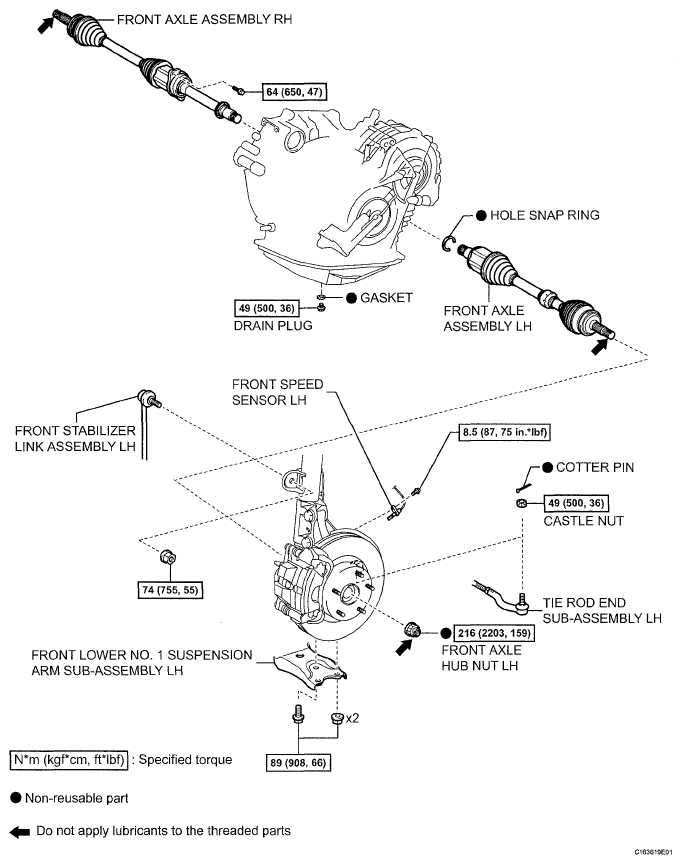

Fig 2: Front Drive Shaft Assembly Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Front Drive Shaft Assembly Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

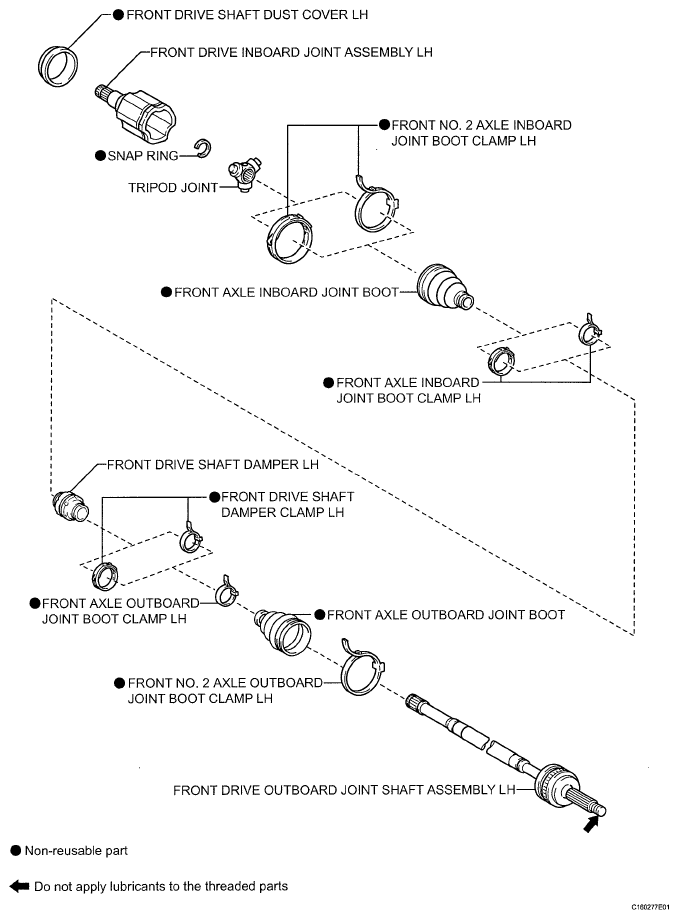

Fig 4: Identifying Front Drive Shaft Assembly Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
