Front Seat Assembly: Reassembly

HINT:

The procedure described below is for the driver side. Use the same procedure for both the front passenger and driver sides, unless otherwise specified.

1. INSTALL FRONT SEAT WIRE (for Front Passenger Side)
   1. Install the 3 clamps and front seat wire.
   Fig 1: Identifying & Installing 3 Front Seat Wire Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL OCCUPANT CLASSIFICATION ECU (for Front Passenger Side)  (See INSTALLATION )
3. INSTALL SEAT POSITION SENSOR  (See INSTALLATION )
4. INSTALL SEAT SLIDE POSITION SENSOR PROTECTOR  (See INSTALLATION )
5. INSTALL FRONT SEAT CUSHION LOWER SHIELD LH
   1. Engage the claw and install the front seat cushion lower shield.
   Fig 2: Identifying & Installing Front Seat Cushion Lower Shield Claw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL FRONT SEAT CUSHION LOWER SHIELD RH

   HINT:

   Use the same procedure as for the LH side.

7. INSTALL RECLINING ADJUSTER OUTSIDE COVER LH
   1. Install the reclining adjuster outside cover with the screw.
   Fig 3: Locating & Installing Reclining Adjuster Outside Cover Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL RECLINING ADJUSTER OUTSIDE COVER RH

   HINT:

   Use the same procedure as for the LH side.

9. INSTALL RECLINING ADJUSTER INSIDE COVER LH
   1. Engage the claw and install the reclining adjuster inside cover.
   2. Tighten the screw.
   Fig 4: Locating & Installing Reclining Adjuster Inside Cover Screw & Claw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

11. INSTALL FRONT SEAT SIDE AIRBAG ASSEMBLY
    1. Install the front seat side airbag with the 2 nuts.

       Torque: 5.5 N*m (55 kgf*cm, 49 in.*lbf)

       Fig 5: Locating Front Seat Side Airbag Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 wiring harness clamps.
       Fig 6: Identifying Wiring Harness Clamps

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 4 wiring harness clamps and the airbag connector.
       Fig 7: Identifying & Installing 4 Wiring Harness Clamps

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTALL FRONT SEAT BACK WITH COVER PAD
    1. Install the front seat back cover pad.
       NOTE: The fabric for fixing the airbag must mot be wrinkled when installing the front seat back cover pad.
       Fig 8: Identifying Front Seat Back Cover Pad

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

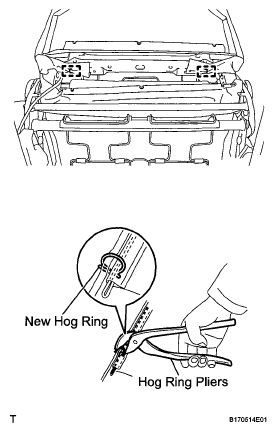

    2. Using hog ring pliers, install 2 new hog rings as shown in the illustration.
       Fig 9: Installing Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using hog ring pliers, install 3 new hog rings as shown in the illustration.
       Fig 10: Installing Hog Rings Using Hog Ring Pliers

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. INSTALL FRONT SEAT ARMREST ASSEMBLY (for Driver Side)
    1. Install the front seat armrest assembly with the bolt.

       Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

       Fig 11: Locating Front Seat Armrest Assembly Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL SEAT ARMREST HOLE COVER (for Driver Side)
    1. Engage the 2 claws and install the front seat armrest hole cover.
       Fig 12: Identifying Seat Armrest Hole Cover Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY
    1. Align the protruding portions of the front seat headrest support with the installation grooves of the front seat back frame.
    2. Engage the 4 claws and install the 2 front seat headrest supports.
    Fig 13: Identifying Front Seat Headrest Supports Claws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL OCCUPANT CLASSIFICATION SENSOR (for Front Passenger Side)  (See INSTALLATION )
17. INSTALL FRONT SEAT CUSHION WITH COVER PAD

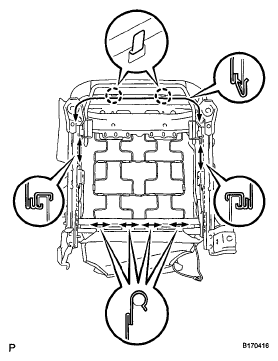

    1. Engage the 2 claws and 7 hooks, and install the front seat cushion cover pad.
    2. Fix the front seat side airbag wiring harness with the front seat cushion cover pad fixing
       Fig 14: Identifying Front Seat Cushion Cover Pad Claws And Hooks

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clips.
       Fig 15: Locating Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 2 bands shown in the illustration.
       Fig 16: Locating Bands

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL FRONT SEAT CUSHION SHIELD RH
    1. Engage the claw and the clip and install the front seat cushion shield.
    2. Install the screw.
    Fig 17: Locating Front Seat Cushion Shield Claw And Clip

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. INSTALL FRONT SEAT INNER BELT ASSEMBLY  (See INSTALLATION )
20. INSTALL FRONT SEAT CUSHION SHIELD LH
    1. Engage the 2 claws and the clip and install the front seat cushion shield.
    2. Install the 2 screws.
       Fig 18: Locating Front Seat Cushion Shield Screws And Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. INSTALL RECLINING ADJUSTER KNOB (for Driver Side)
    1. Install the reclining adjuster knob with the 2 screws.
       Fig 19: Locating Reclining Adjuster Knob Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. INSTALL VERTICAL ADJUSTER COVER (for Driver Side)
    1. Engage the 3 claws and the install the vertical adjuster cover.
       Fig 20: Identifying Vertical Adjuster Cover Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. INSTALL RECLINING ADJUSTER RELEASE HANDLE
    1. Engage the claw and install the reclining adjuster release handle.
    Fig 21: Identifying Reclining Adjuster Release Handle Claw

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
