System Diagram

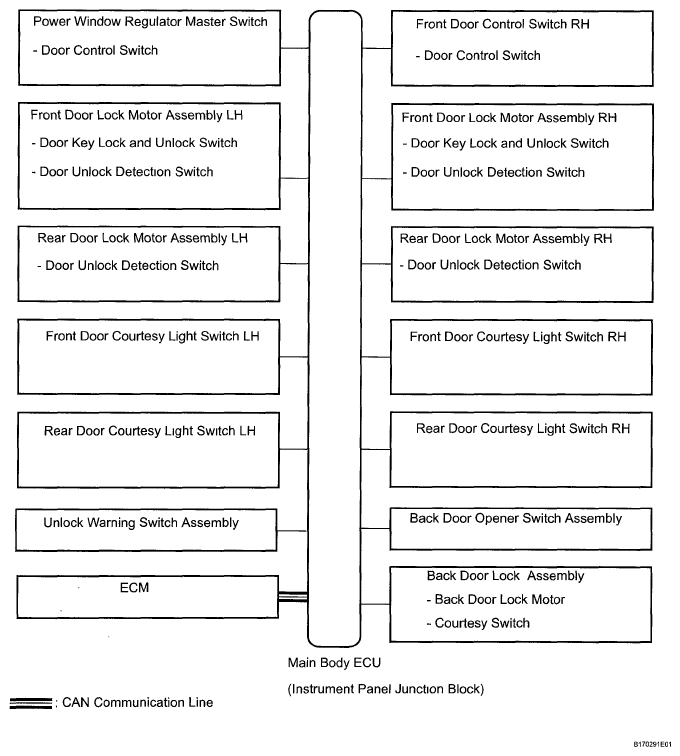

Fig 1: Power Door Lock Control System Diagram
G05390955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Main Body ECU Park/Neutral Position Switch CAN
