Home >> Scion >> 2009 >> xB Automatic >> Repair and Diagnosis >> Transmission >> U241E Automatic Transaxle >> Forward Clutch >> Components

Forward Clutch: Components

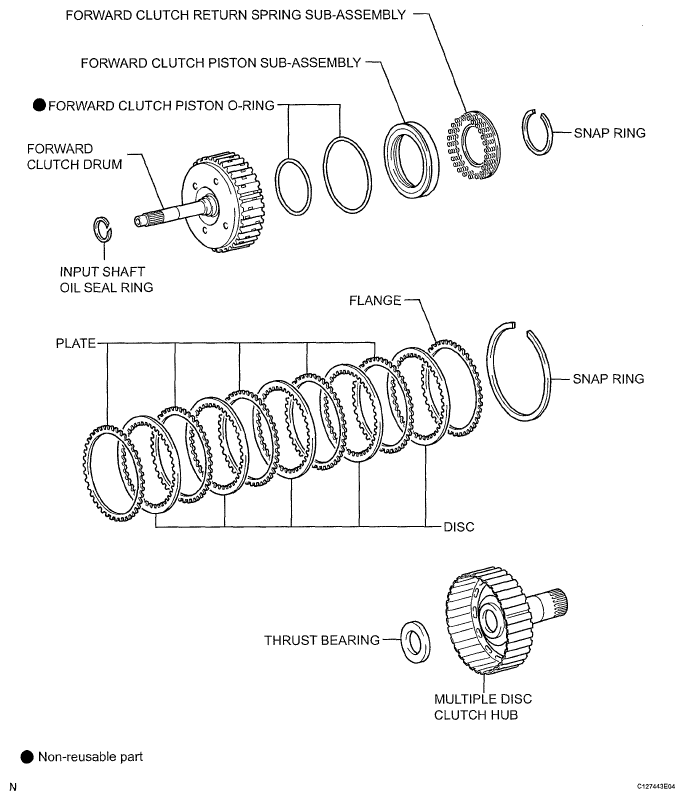

Fig 1: Identifying Forward Clutch Components

G05388523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
