Manual Shifting Test

HINT:

• With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle.
• If any abnormalities are found in the following test, the problem is in the transaxle itself.

1. Disconnect the transmission wire connector.
2. Drive with the transmission wire disconnected. Shif the shift lever to the D position to check whether the shifting condition changes according to the table below.
   SHIFTING CONDITION CHART



   Shift Position	Shifting Condition
   D	No Shift (Not Change)
   P	P
   R	R

   HINT:

   When driving with the transmission wire disconnected, and the shift lever position is in D, the gear position is held in 3rd. However, when the shift position is in R or P, the operation is same as usual.

3. Connect the connector of the transmission wire.
4. Clear the DTC.

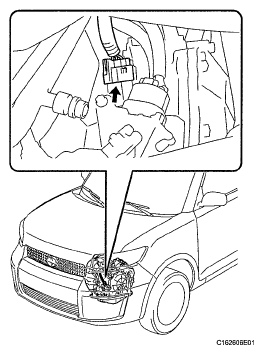

   Fig 1: Locating Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
