Rear Shock Absorber: Components

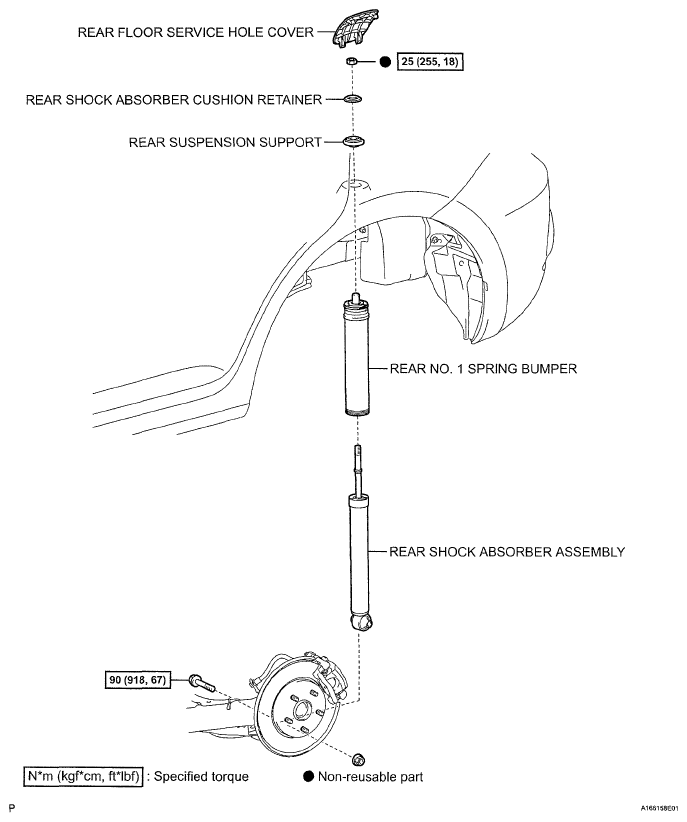

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications
G05389278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
