Rear Axle Beam: Components

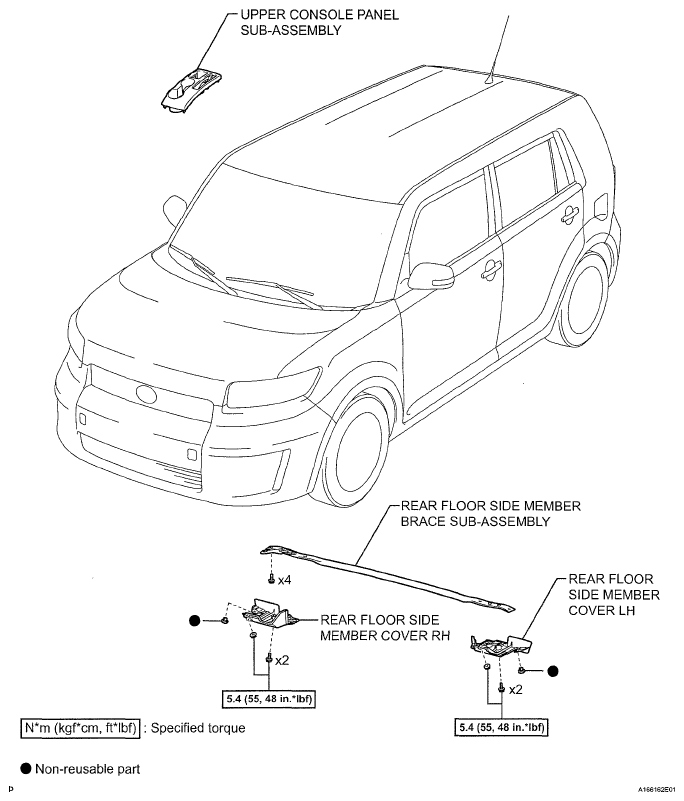

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (1 Of 5)
G05389292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

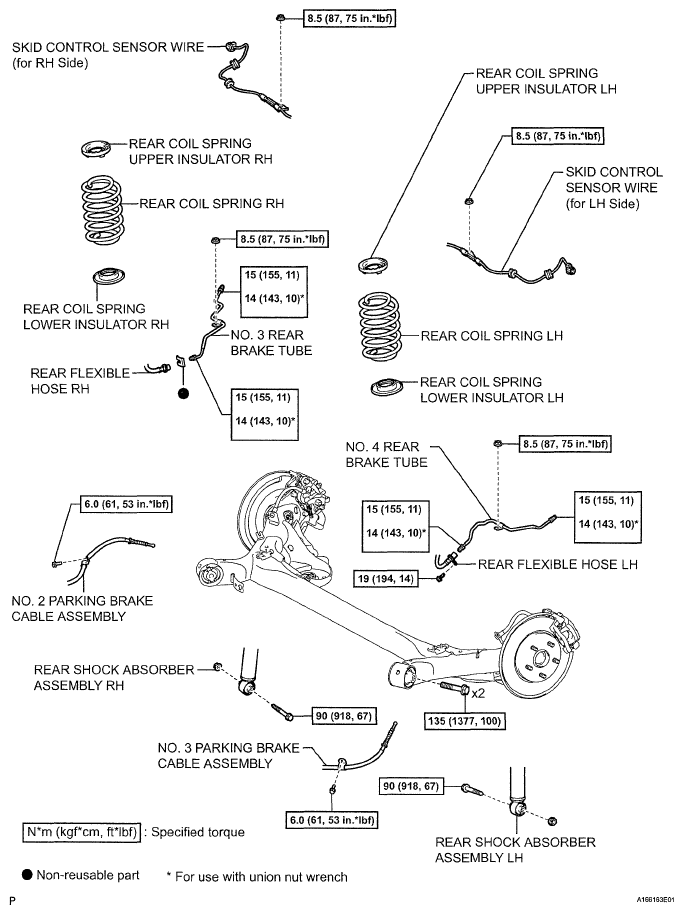

Fig 2: Rear Axle Beam Replacement Components With Torque Specifications (2 Of 5)
G05389293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

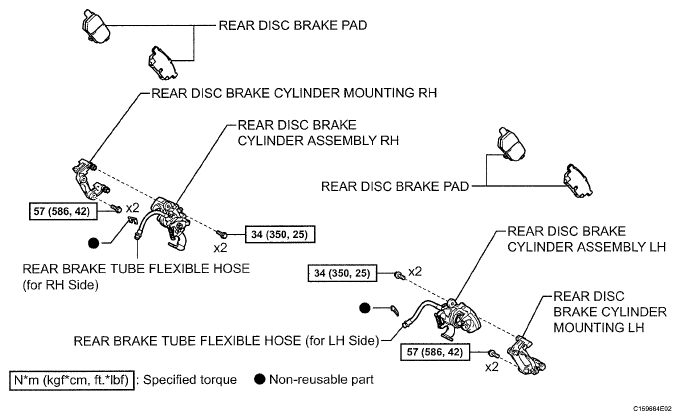

Fig 3: Rear Axle Beam Replacement Components With Torque Specifications (3 Of 5)
G05389294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

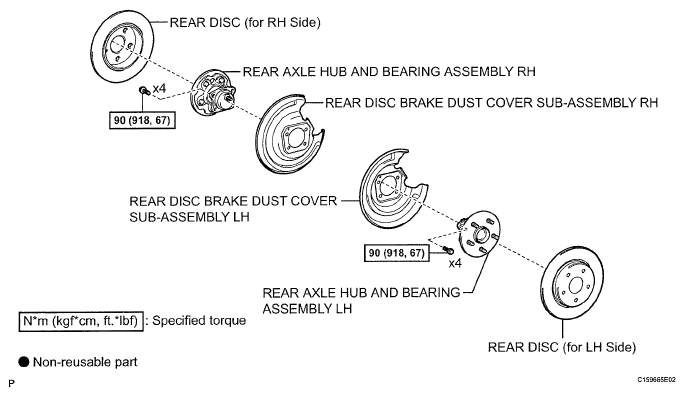

Fig 4: Rear Axle Beam Replacement Components With Torque Specifications (4 Of 5)
G05389295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

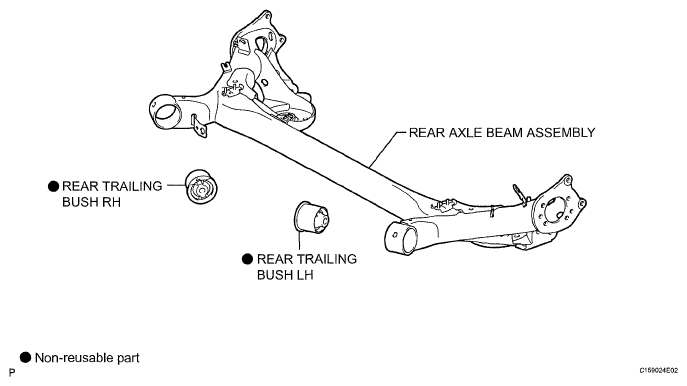

Fig 5: Identifying Rear Axle Beam Components (5 Of 5)
G05389296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
