Front Passenger Airbag Assembly: Components

WARNING: This page is about a different car, the 2008 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Passenger Airbag Assembly Components (1 Of 2)
G05390398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

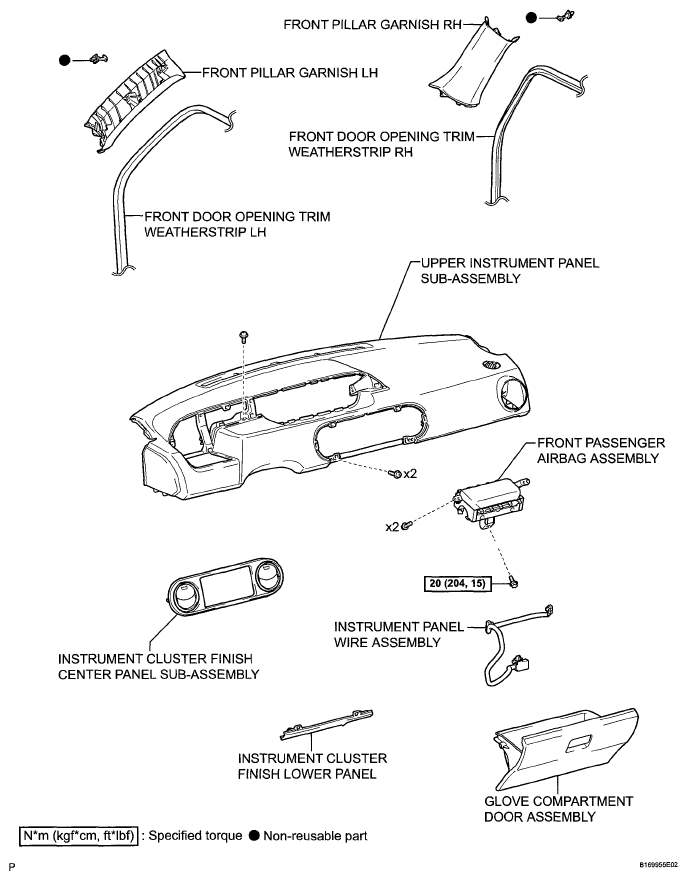

Fig 2: Front Passenger Airbag Assembly Replacement Components With Torque Specifications (2 Of 2)
G05390399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
