Crankshaft Position Sensor: Components

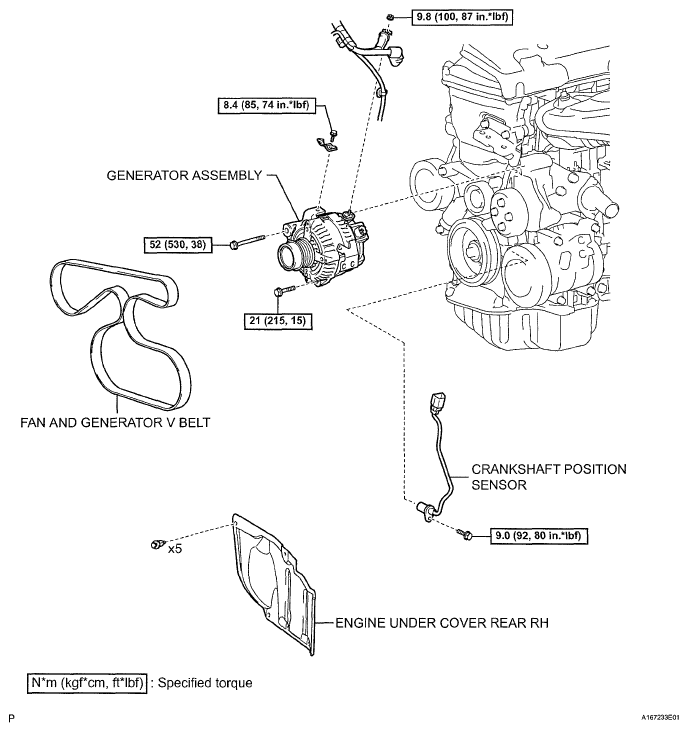

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications

G05386957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
