System Description
- METER GAUGE AND WARNING / INDICATOR
Gauge:
GAUGE CHARTItem Detail Speedometer Based on signals received from the wheel speed sensor, ABS and traction actuator (skid control ECU) calculates vehicle speed and transmits data to meter (CAN line) Tachometer ECM transmits engine speed to meter (CAN line) Water Temperature Gauge ECM transmits water temperature signal to meter (CAN line) Fuel Gauge Fuel sender gauge transmits signal to meter (Direct line) Warning / Indicator:
WARNING/INDICATOR CHARTItem Detail TURN SIGNAL Receives turn signal from flasher relay (Direct line) HAZARD SIGNAL Receives hazard warning signal from flasher relay (Direct line) BEAM Receives high beam signal from DIMMER relay (Direct line) CHARGE Receives malfunction charge signal from ECM (CAN line and direct line) MIL Receives malfunction check signal from ECM (Direct line) DOOR Open door indicator illuminates when receiving signal from main body ECU (CAN line) DRIVER'S SEAT BELT Receives driver seat belt signal (unfastened) from center airbag sensor (CAN line) BRAKE - Receives parking brake switch signal from main body ECU (CAN line)
- Receives brake fluid level warning signal from brake fluid level warning switch (Direct line)
- Receives malfunction signal from ABS and traction actuator (skid control ECU) (CAN line)
CRUISE Receives malfunction signal from ECM (CAN line) SRS Receives malfunction signal from center airbag sensor (CAN line) SLIP - Receives signal from ABS and traction actuator (skid control ECU) (CAN line)
- (Flashes when downhill assist control and hill-start assist control operate)
ABS Receives malfunction signal from ABS and traction actuator (skid control ECU) (CAN line) VSC OFF Receives VSC control off signal or VSC system fail-safe control signal from ABS and traction actuator (skid control ECU) (CAN line) TAIL Receives headlight dimmer switch condition signal from T-LP relay (Direct line) EPS Receives malfunction signal from power steering ECU (CAN line) TIRE PRESSURE Receives malfunction signal from tire pressure warning ECU (Direct line) OIL PRESSURE Receives warning signal from engine oil pressure switch (Direct line) MAINT REQD - Illuminates when oil is changed and vehicle is driven about 5,000 miles (8,000 km)
- Blinks when oil is changed and vehicle is driven about 4,500 miles (7,242 km) to 5,000 miles (8,000 km)
FUEL Receives remaining fuel signal from fuel sender gauge (Direct line) Warning / Buzzer:

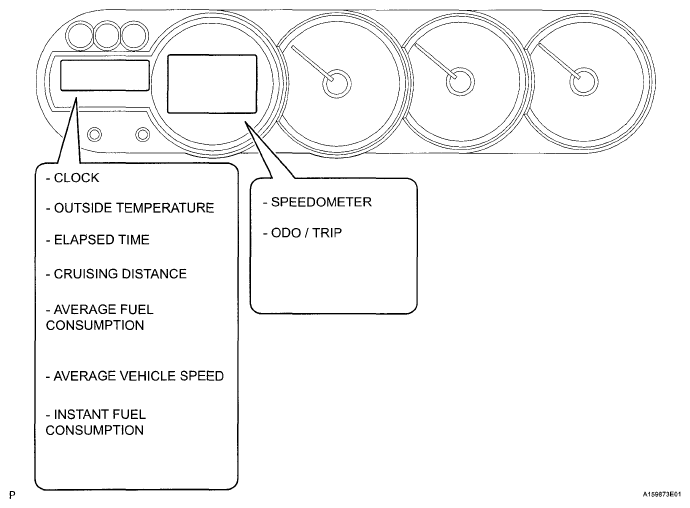

WARNING/BUZZER CHARTItem Detail KEY Reminder Buzzer ON Ignition switch off, key inserted, and door open Seat belt warning Buzzer ON Receives malfunction signal from center airbag sensor assembly LIGHT Reminder Buzzer ON When ignition switch off, light control switch in TAIL position, and driver side door open VSC Buzzer ON When skid control ECU detects strong understeer or oversteer - LIQUID CRYSTAL DISPLAY (LCD)
