System Diagram

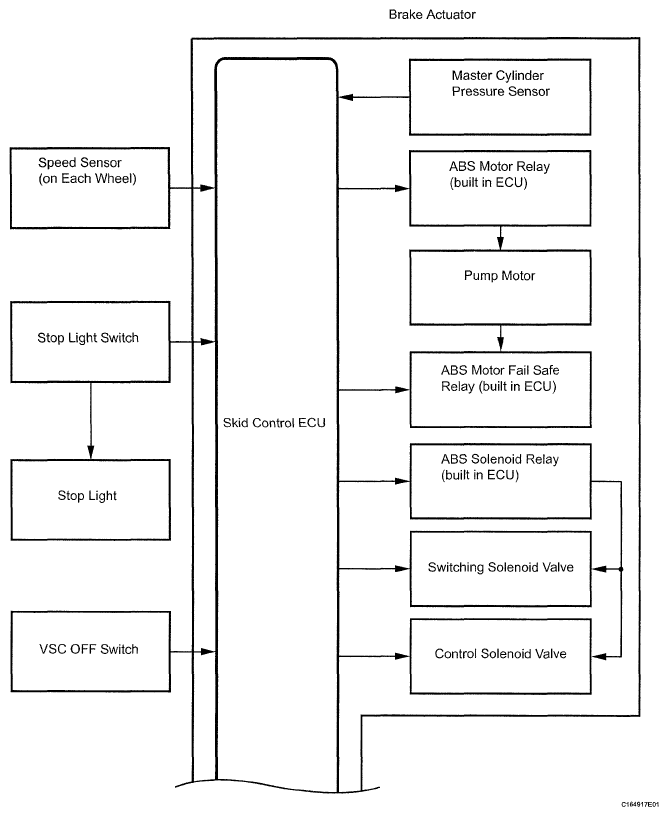

Fig 1: Vehicle Stability Control System Diagram (1 Of 2)
G05389416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

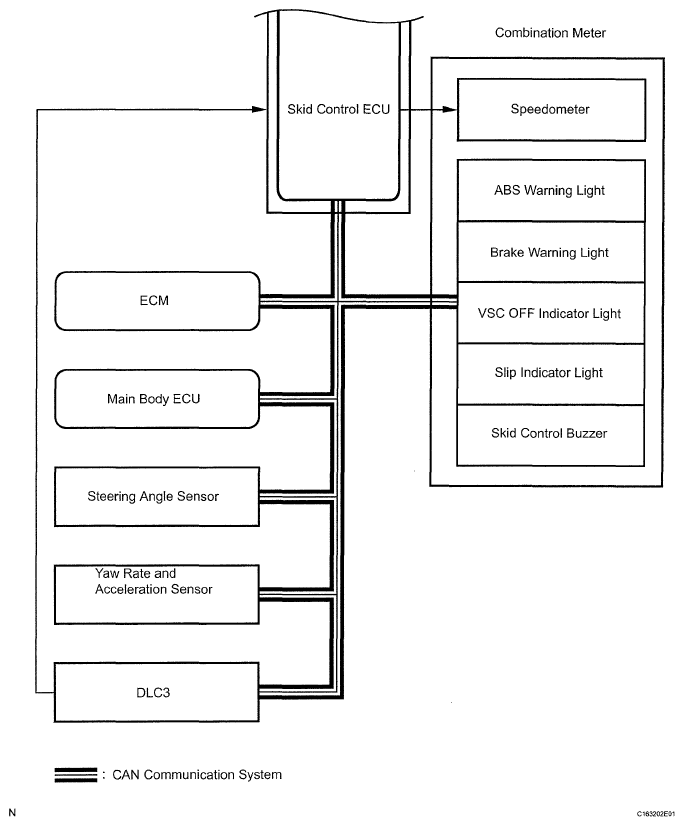

Fig 2: Vehicle Stability Control System Diagram (2 Of 2)
G05389417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEERING ANGLE SENSOR SIGNAL REFERENCE

Transmitting ECU (transmitter) Receiving ECU Signals Communication Method
Skid control ECU Steering angle sensor Steering angle sensor request signal CAN communication system
Skid control ECU Yaw rate and acceleration sensor Yaw rate and acceleration request signal CAN communication system
Skid control ECU ECM
  • Wheel speed signal
  • VSC data signal
 CAN communication system
ECM Skid control ECU
  • Shift position signal
  • Throttle position signal
  • Engine revolution signal
  • Intake air temperature signal
  • Engine torque request signal
  • Accelerator pedal position signal
 CAN communication system
Main body ECU Skid control ECU Parking brake switch signal CAN communication system
Skid control ECU Combination meter
  • ABS warning light signal
  • Brake warning light signal
  • VSC OFF indicator light signal
  • SLIP indicator light signal
  • Wheel speed signal
 CAN communication system
