Parts Location

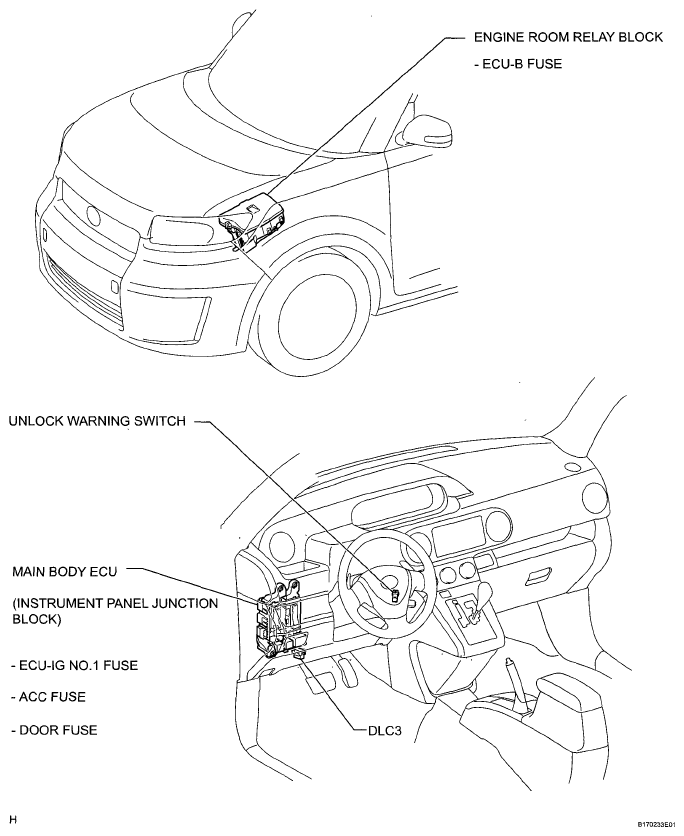

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 3)
G05390952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

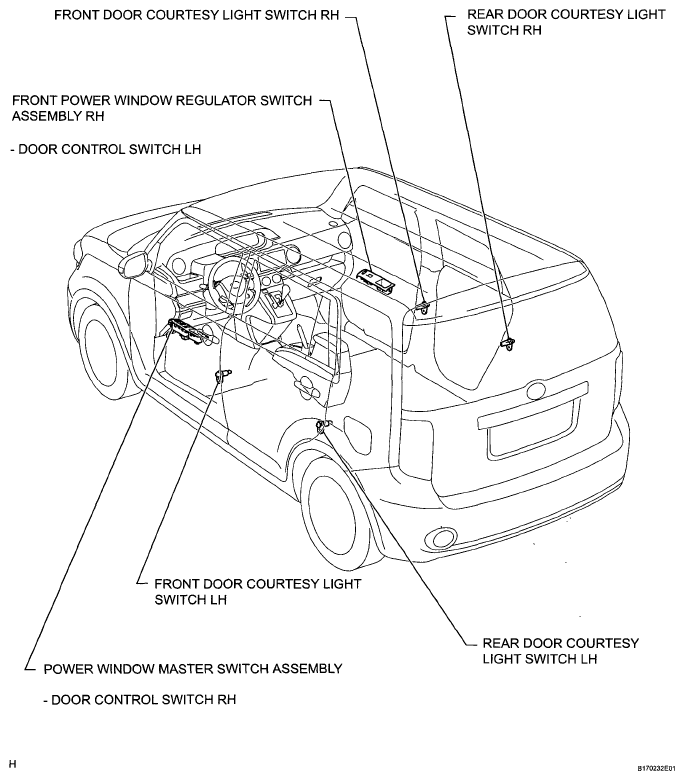

Fig 2: Identifying Power Door Lock Control System Components Location (2 Of 3)
G05390953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

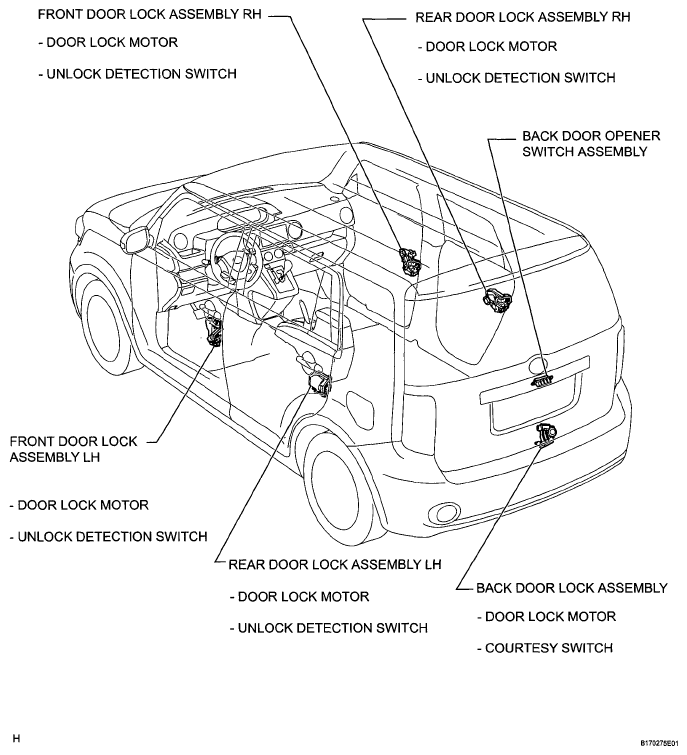

Fig 3: Identifying Power Door Lock Control System Components Location (3 Of 3)
G05390954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
