Home >> Scion >> 2009 >> xB Automatic >> Repair and Diagnosis (Single Page) >> Electrical >> Starter >> 2AZ-FE Starting >> Ignition Switch >> Components

Ignition Switch: Components

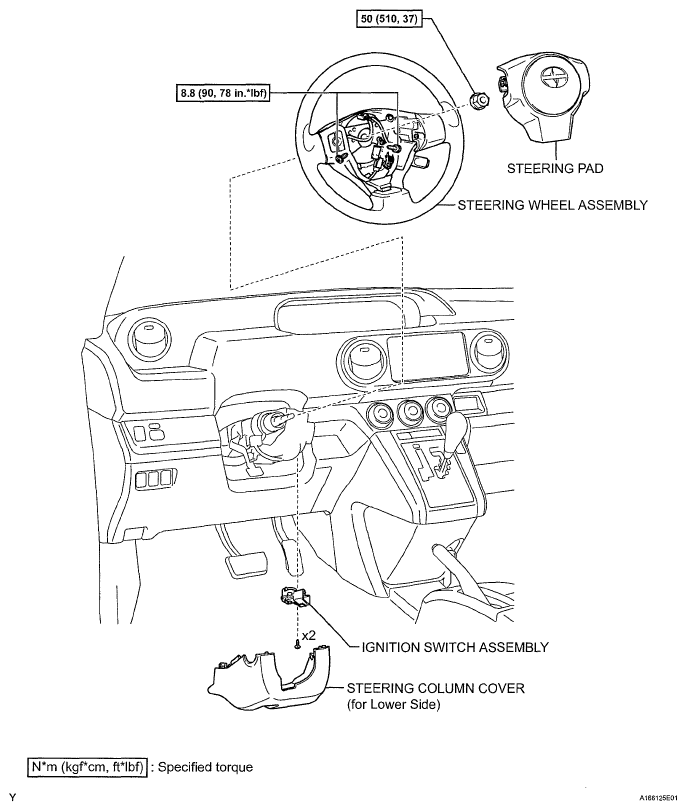

Fig 1: Ignition Switch Replacement Components With Torque Specifications

G05387885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
