Transmission Control Cable: Components

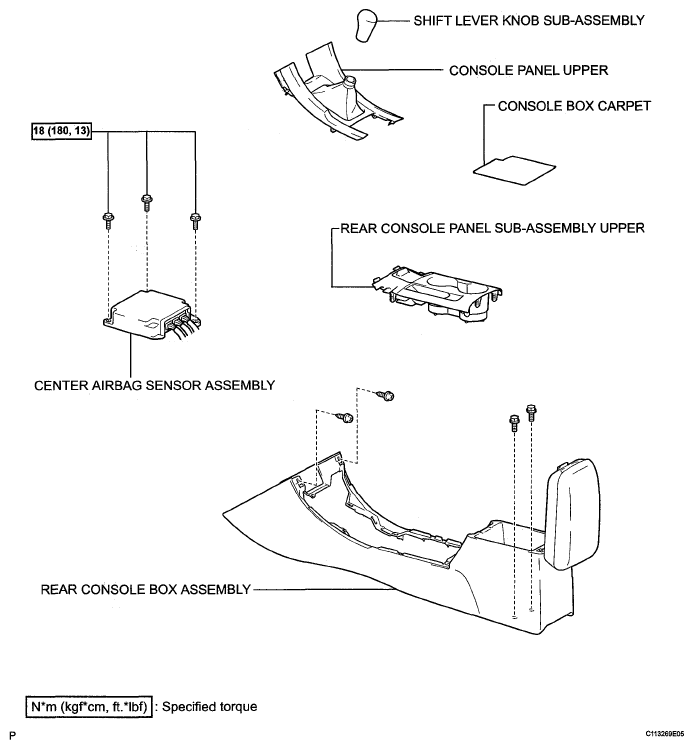

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
G05539582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

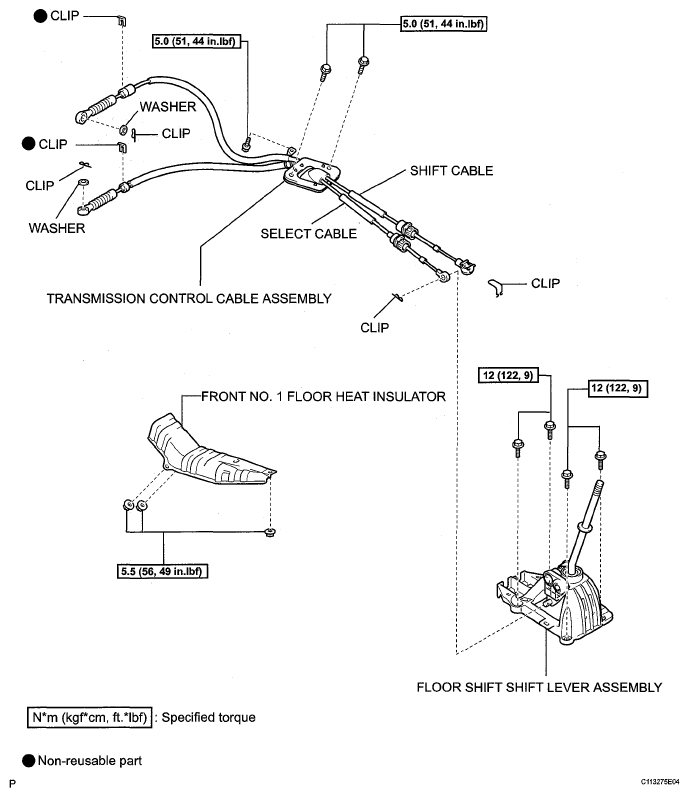

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
G05539583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
