Shift Lever Assembly: Components

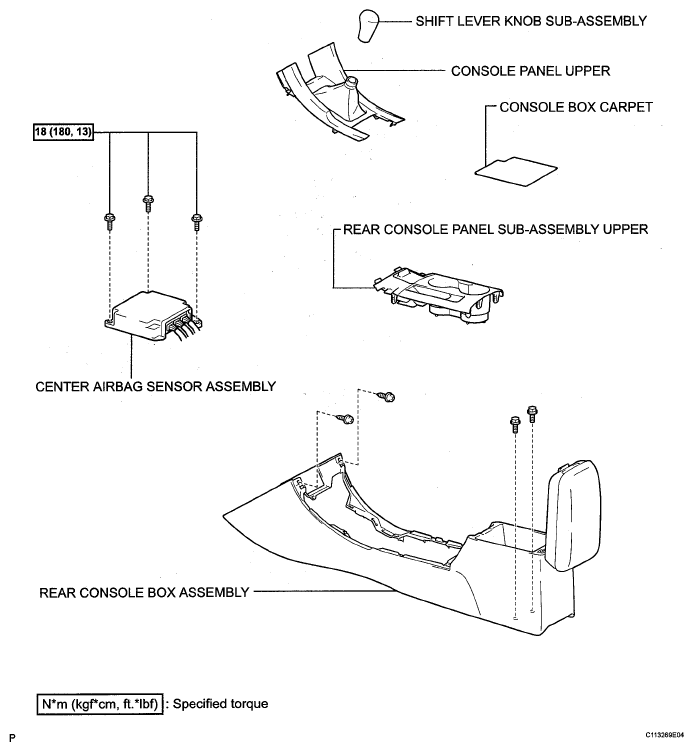

Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications (1 Of 2)
G05539937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

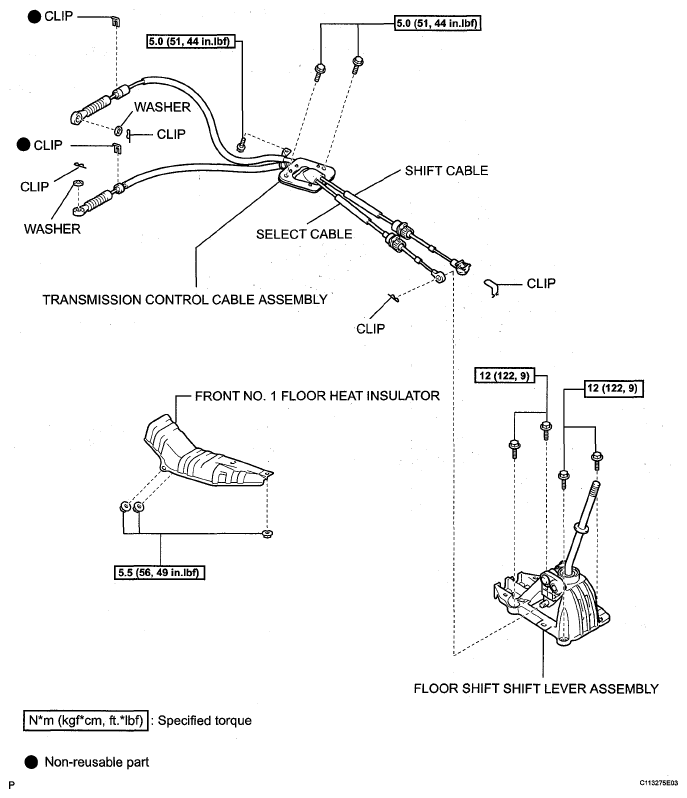

Fig 2: Floor Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 2)
G05539938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
