Home >> Scion >> 2009 >> tC Standard >> Repair and Diagnosis >> Transmission >> E350 Manual Transaxle >> Differential Case >> Components

Differential Case: Components

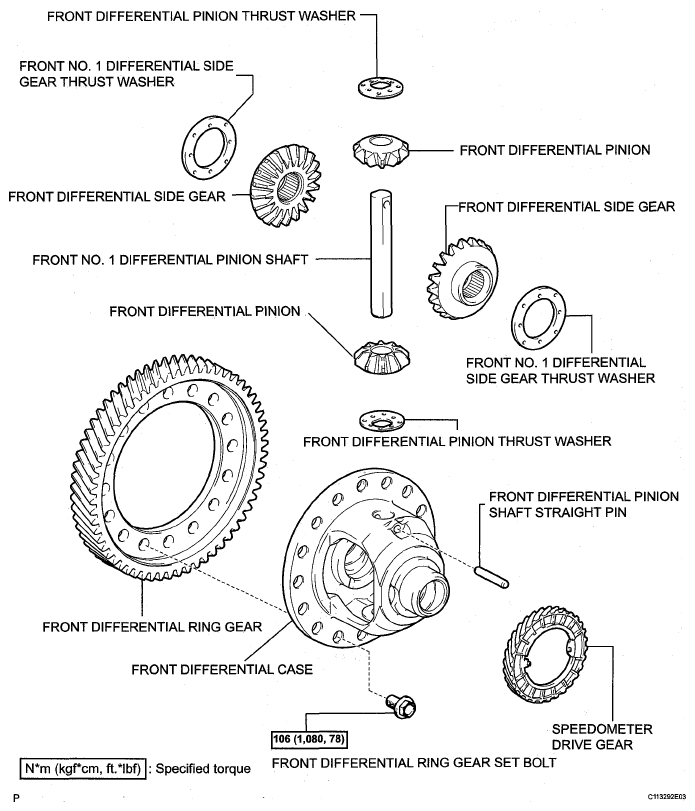

Fig 1: Differential Case Replacement Components With Torque Specifications

G05539913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
