Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Radiator Fan and Condenser Fan
>>
Notes
Radiator Fan and Condenser Fan: Notes

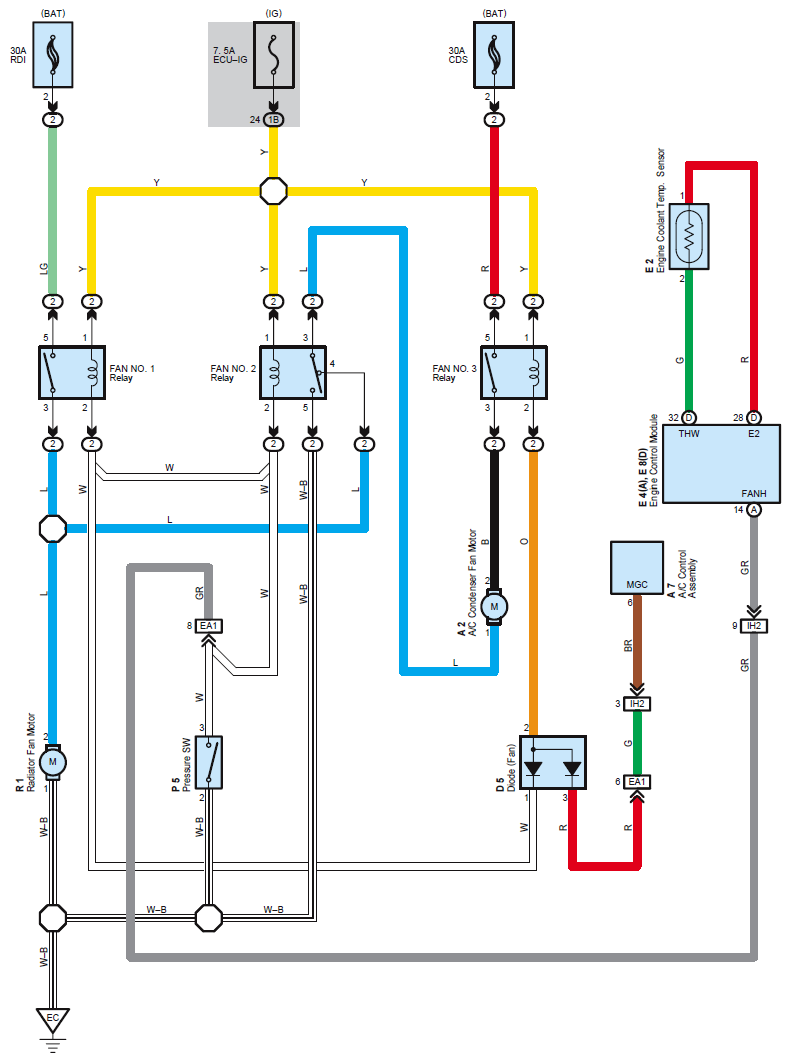

Fig 1: Radiator Fan And Condenser Fan - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
