Parking Brake Assembly: Components

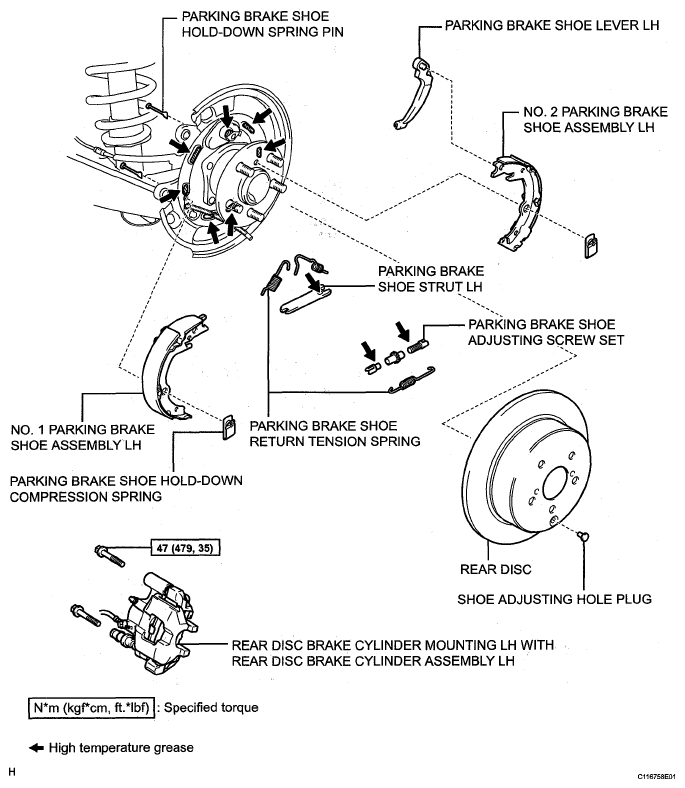

Fig 1: Parking Brake Assembly Replacement Components With Torque Specifications

G05540465

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
