Rear Seat Assembly: Reassembly

CAUTION: Wear protective gloves. Sharp areas on the seatback frame may injure your hands.

INSTALL REAR SEAT RECLINING CONTROL CABLE LH
1. Install the 2 control cables as shown in the illustration.

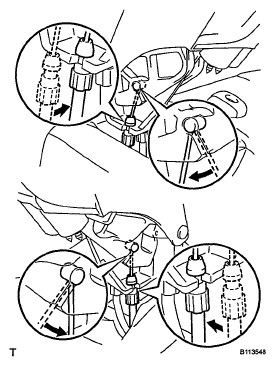

  Fig 1: Identifying Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK COVER LH
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.
1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
2. Install the seatback cover (with pad) to the seatback frame.

  Fig 2: Identifying Seatback Cover To Seatback Pad With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 4 claws to install the 2 headrest supports.

  Fig 3: Identifying Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Attach the 2 hooks and 2 claws, and install the seatback board to the seatback frame.

  Fig 4: Identifying Seatback Frame With Hooks And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Close the zipper.
6. Using hog ring pliers, install the seatback cover (with pad) with new hog rings.

  Fig 5: Identifying Zipper Area
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH
1. Install the 2 reclining control cables as shown in the illustration.

  Fig 6: Identifying Reclining Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control lever to the seatback with the 2 screws.
3. Attach the 2 claws to install the rear seatback lock striker cover.
INSTALL REAR SEAT RECLINING CONTROL CABLE RH
HINT:

Use the same procedures described for the LH side.

Fig 7: Identifying Seatback Lock Striker Cover With Screws And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SHOULDER BELT COVER RH
1. Attach the 3 claws to install the belt cover.

  Fig 8: Identifying Claws On Belt Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT OUTER BELT ASSEMBLY CENTER
1. Install the belt with the nut as shown in the illustration.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
2. Attach the hook.

  Fig 9: Identifying Rear Seat Outer Belt With Nut And Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the holes of the 3 parts shown in the illustration, and then install the 3 nuts.

  Fig 10: Identifying Holes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Before tightening the nuts, raise the seatback to the upright position and make sure the seatback stops in the first lock position of the frame.

  Fig 11: Identifying First Lock Position Of Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Attach the 2 claws to close the shoulder belt cover.
INSTALL REAR SEAT SIDE HINGE MALE COVER
1. Attach the 2 claws to install the male cover.

  Fig 12: Identifying Claws To Closing Shoulder Belt Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE HINGE MALE COVER LH
1. Attach the claw to install the male cover.

  Fig 13: Identifying Claw On Male Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE HINGE MALE COVER RH
1. Attach the 2 claws and install the male cover with the screws.

  Fig 14: Identifying Rear Seat Side Hinge Male Cover With Screws And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK COVER RH
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.

  Fig 15: Identifying Seat Cushion Cover To Seat Cushion Pad With Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
2. Install the seatback cover (with pad) to the seatback frame.
3. Attach the 4 claws to install the 2 headrest supports.

  Fig 16: Identifying Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the seatback board to the seatback frame.

  Fig 17: Identifying Seatback Frame With Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Close the zipper.
6. Using hog ring pliers, install the seatback cover (with pad) with new hog rings.

  Fig 18: Identifying Zipper Area
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SHOULDER BELT GUIDE CENTER
1. Attach the 4 claws to install the belt guide.
INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH
HINT:

Use the same procedures described for the LH side

Fig 19: Identifying Belt Guide With Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SEAT RECLINING COVER LH
1. Install the reclining cover with the clip.
INSTALL REAR NO. 1 SEAT RECLINING COVER LH
HINT:

Use the same procedures described for the rear No. 2 seat reclining cover LH.
INSTALL REAR NO. 2 SEAT RECLINING COVER RH
HINT:

Use the same procedures described for the LH side.

Fig 20: Identifying Reclining Cover With Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION COVER
1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.

    Fig 21: Identifying Seat Cushion Cover To Seat Cushion Pad With Hog Rings
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT HEADREST ASSEMBLY LH
INSTALL REAR SEAT HEADREST ASSEMBLY RH
INSTALL REAR SEAT HEADREST ASSEMBLY CENTER
