Rear Seat Assembly: Disassembly

CAUTION: Wear protective gloves. Sharp areas on the seatback frame may injure your hands.
  1. REMOVE REAR SEAT HEADREST ASSEMBLY LH
  2. REMOVE REAR SEAT HEADREST ASSEMBLY RH
  3. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER
  4. REMOVE REAR SEAT CUSHION COVER
    1. Remove the hog rings and seat cushion cover from the seat cushion pad.
  5. REMOVE REAR NO. 2 SEAT RECLINING COVER LH
    1. Remove the clip and reclining cover in the direction indicated by the arrow in the illustration.
  6. REMOVE REAR NO. 1 SEAT RECLINING COVER LH

    HINT:

    Use the same procedures described for the rear No. 2 reclining cover LH.

  7. REMOVE REAR NO. 2 SEAT RECLINING COVER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 1: Identifying Clip And Reclining Cover
    G05541976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH
    1. Using a screwdriver, detach the 2 claws and remove the rear seatback lock striker cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws.
      Fig 2: Identifying Claws And Removing Rear Seatback Lock Striker Cover
      G05541977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

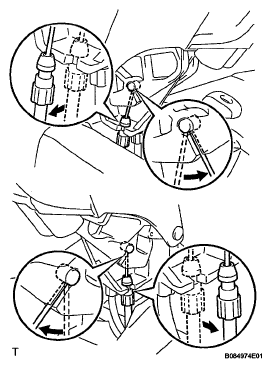

    3. Remove the 2 reclining control cables as shown in the illustration. Then remove the control lever.
      Fig 3: Identifying Reclining Control Cables
      G05541978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEATBACK COVER LH
    1. Remove the hog rings. Open the lower part of the seatback cover.
    2. Open the zipper.
      Fig 4: Identifying Zipper Area
      G05541979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws.
    4. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 hooks. Then, remove the seatback board.
      Fig 5: Identifying Seatback Board
      G05541980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the 4 claws and remove the 2 headrest supports.
    6. Remove the seatback cover (with pad) from the seatback frame.
    7. Remove the hog rings and seatback cover from the seatback pad.
      Fig 6: Identifying Headrest Supports
      G05541952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEAT RECLINING CONTROL CABLE LH
    1. Remove the 2 control cables as shown in the illustration.
  11. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 7: Identifying Control Cables
    G05541982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER
    1. Using a screwdriver, detach the 2 claws labeled A.

      HINT:

      Tape the screwdriver tip before use.

    2. Pull the inside cover in the direction indicated by the arrow in the illustration to detach the claw. Then, remove the shoulder belt guide.
      Fig 8: Identifying Rear Seat Shoulder Belt Guide Center
      G05541983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEATBACK COVER RH
    1. Remove the hog rings. Open the lower part of the seatback cover.
    2. Open the zipper.
      Fig 9: Identifying Zipper Area
      G05541984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws.
    4. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 3 hooks. Then remove the seatback board.
      Fig 10: Identifying Seatback Board
      G05541985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the 8 claws and remove the 4 headrest supports.
    6. Remove the seatback cover (with pad) from the seatback frame.
    7. Remove the hog rings and seatback cover from the seatback pad.
      Fig 11: Identifying Headrest Supports
      G05541952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR SEAT SIDE HINGE MALE COVER RH
    1. Remove the 2 screws.
    2. Using a screwdriver, detach the 2 claws and remove the male cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 12: Identifying Male Cover With Claws And Screws
      G05541987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR SEAT SIDE HINGE MALE COVER LH
    1. Remove the male cover in the direction indicated by the arrow in the illustration.
  16. REMOVE REAR SEAT SIDE HINGE MALE COVER
    1. Using a screwdriver, detach the claws and remove the male cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 13: Identifying Rear Seat Side Hinge Male Cover LH
      G05541988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT OUTER BELT ASSEMBLY CENTER
    1. Detach the 2 claws and open the shoulder belt cover.
      Fig 14: Identifying Claws And Opening Shoulder Belt Cover
      G05541989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the hook.
    3. Remove the 4 nuts and belt.
      Fig 15: Identifying Nuts
      G05541990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SEAT SHOULDER BELT COVER RH
    1. Detach the 3 claws and remove the belt cover.
  19. REMOVE REAR SEAT RECLINING CONTROL CABLE RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 16: Identifying Claws On Belt Cover
    G05541991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
