Outer Rear View Mirror: Reassembly

INSTALL SIDE TURN SIGNAL LIGHT LENS LH
1. First set the lens position by inserting the lens peg to the location labeled A in the illustration. Then insert the lens guide to the V-shaped groove as shown in C in the illustration.

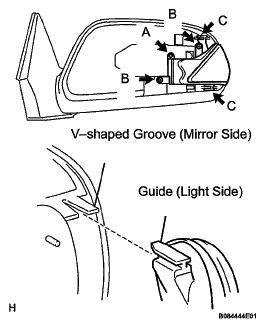

  Fig 1: Locating Side Turn Signal Light Lens LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the lens with the 2 screws labeled B.
3. Connect the connector.
INSTALL MIRROR GARNISH
CONNECT MIRROR
HINT:

Before connecting the mirror holder, use a dryer to sufficiently heat the backside of the mirror holder where the claws are located.

NOTE: If the ambient temperature is low and the claws are not heated before installing, the claws may be broken.

Fig 2: Heating Backside Of Mirror Holder Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
