System Diagram
System Diagram

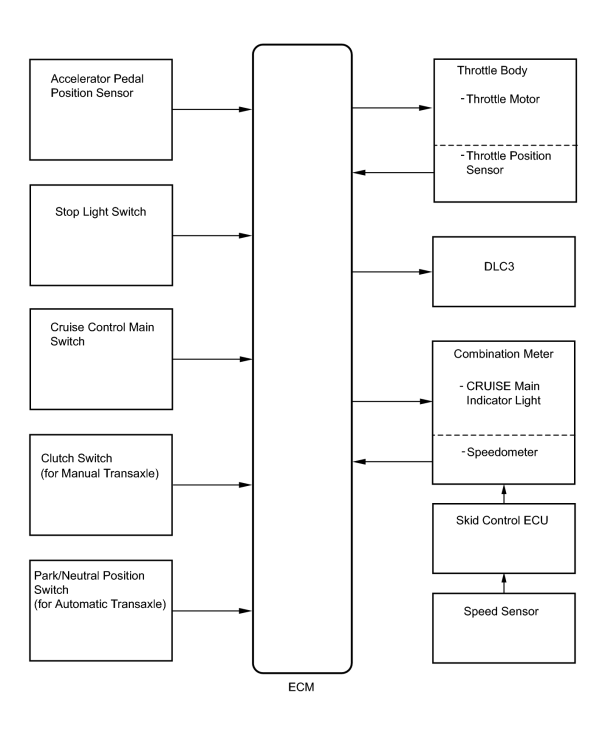

Fig 1: Identifying Cruise Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
