Home >> Scion >> 2009 >> tC Standard >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Auxiliary Emission Control Systems >> PCV Valve >> Components

PCV Valve: Components

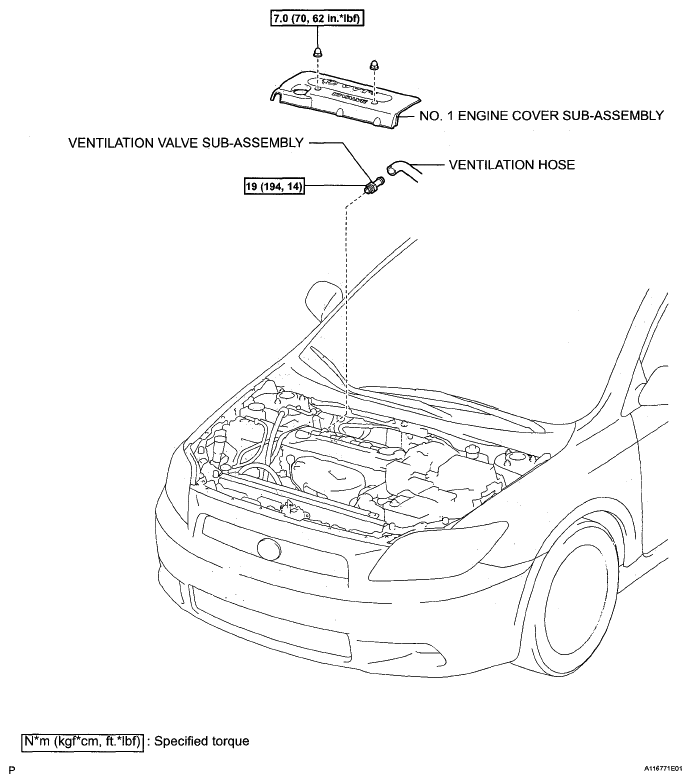

Fig 1: Ventilation Valve Replacement Components With Torque Specifications

G05538577

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
