OEM System Circuits: Taillight: Notes

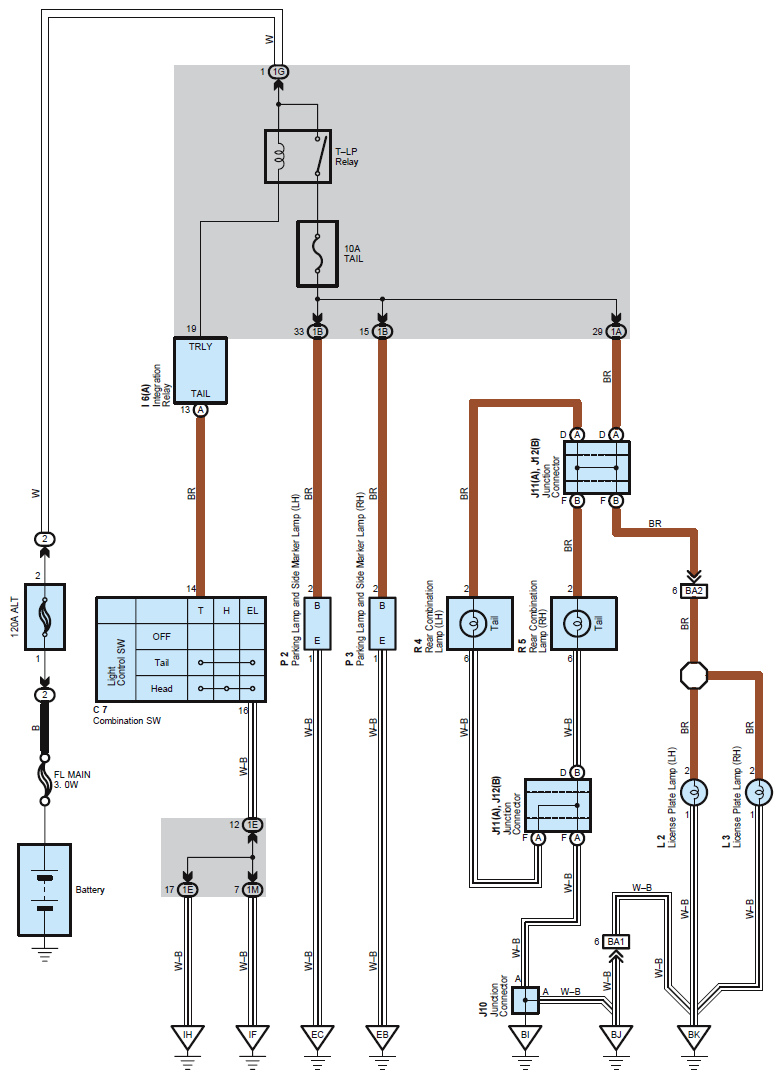

Fig 1: Taillight - Circuit Diagram

G07604539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
