OEM System Circuits: Headlight: Notes

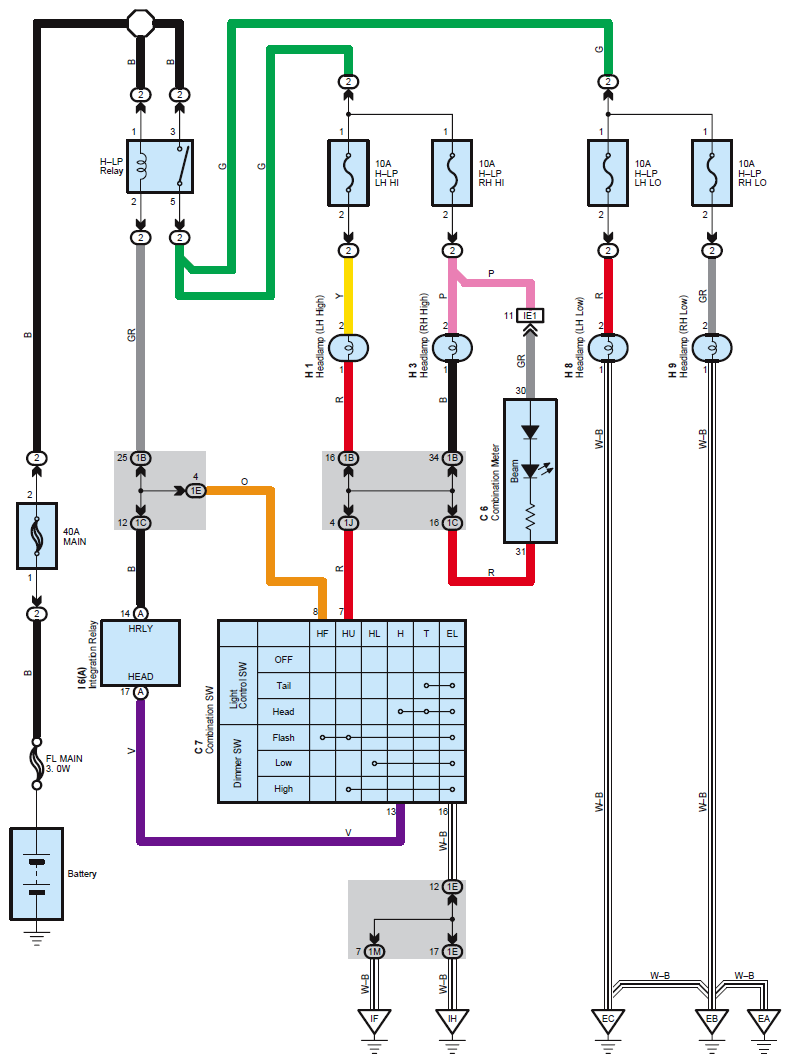

Fig 1: Headlight - Circuit Diagram

G07604531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
