Fuel Pressure Pulsation Damper: Components

Fig 1: Fuel Pressure Pulsation Damper And Replacement Components With Torque Specifications (1 Of 2)
G05538460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

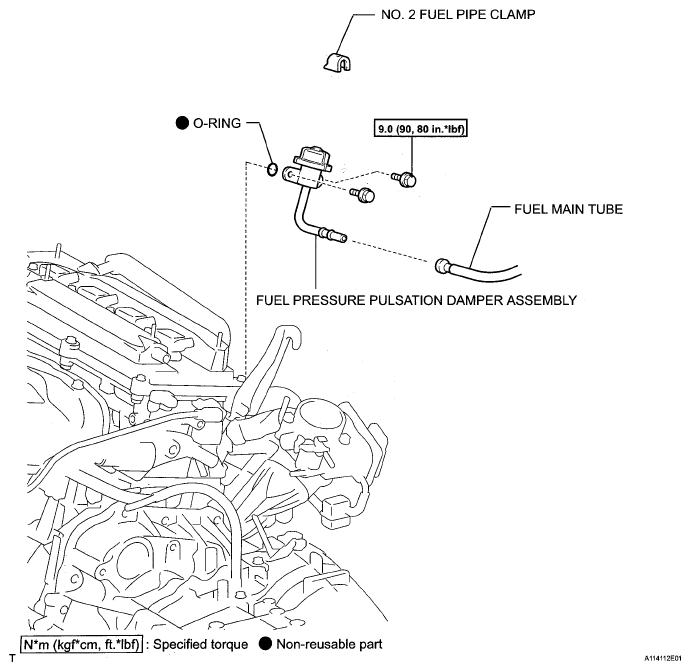

Fig 2: Fuel Pressure Pulsation Damper And Replacement Components With Torque Specifications (2 Of 2)
G05538461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
